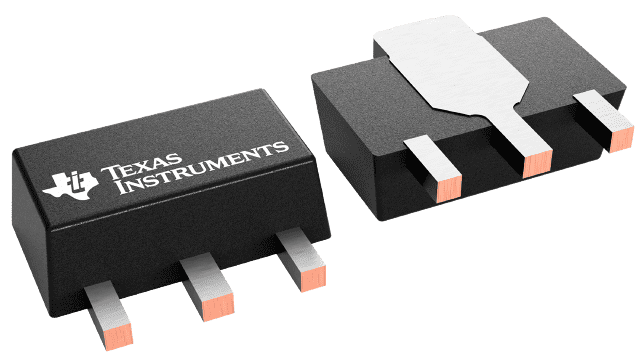

TL432IPK


YeeHing #: Y012-TL432IPK
Inventory: 3600

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TL432IPK Texas Instruments - Yeehing Electronics

Adjustable precision shunt regulator (reverse pinout)

Pricing (USD)

Quantity Unit Price
1 — 99 0.181
100 — 249 0.123
250 — 999 0.095
1,000 + 0.04

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Voltage References
RoHS Y
Mounting Style SMD/SMT
Package / Case SOT-89-3
Reference Type Shunt Adjustable Precision References
Output Voltage Adjustable
Initial Accuracy 2 %
Temperature Coefficient 92 PPM / C
Series VREF - Input Voltage - Max 37 V
Shunt Current - Max 100 mA
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Series TL432
Packaging Reel
Description/Function ADJUSTABLE PRECISION SHUNT REGULATOR
Height 1.5 mm
Length 4.5 mm
Operating Temperature Range - 40 C to + 125 C
Product Voltage References
Width 2.5 mm
Brand Texas Instruments
Shunt Current - Min 600 uA
Topology Shunt References
Maximum Output Voltage 36 V
Moisture Sensitive Yes
Product Type Voltage References
Factory Pack Quantity 1000
Subcategory PMIC - Power Management ICs
Unit Weight 0.002356 oz

For more information, please refer to datasheet

Documents

TL432IPK Datasheet

More Information

The TL431LI / TL432LI are pin-to-pin alternatives to TL431 / TL432. TL43xLI offers better stability, lower temperature drift (VI(dev)), and lower reference current (Iref) for improved system accuracy.
