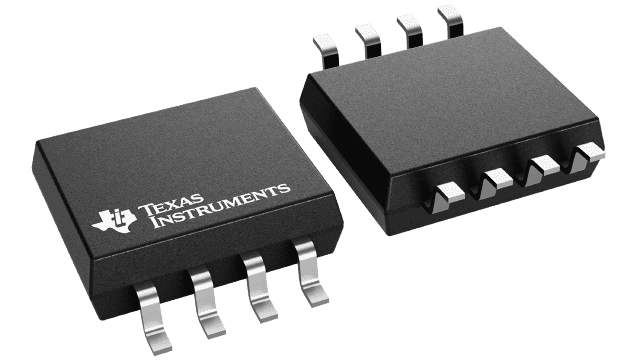

TL712CPSR Texas Instruments - Yeehing Electronics
Single Differential Comparator with Push-Pull Outputs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.402 |
| 100 — 249 | 1.158 |
| 250 — 999 | 0.832 |
| 1,000 + | 0.50 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog Comparators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | SO-8 |
| Comparator Type | Differential |
| Number of Channels | 1 Channel |
| Output Type | Push-Pull |
| Output Current per Channel | 16 mA |
| Ib - Input Bias Current | 600 uA |
| Vos - Input Offset Voltage | 5 mV |
| Supply Voltage - Max | 5.25 V |
| Supply Voltage - Min | 4.75 V |
| Operating Supply Current | 20 mA |
| Response Time | 25 ns |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 70 C |
| Packaging | Reel |
| Features | Hysteresis, Strobe |
| Height | 1.95 mm |
| Input Type | Rail-to-Rail |
| Length | 6.2 mm |
| Product | Analog Comparators |
| Series | TL712 |
| Supply Type | Single |
| Technology | Bipolar |
| Type | Differential Comparator |
| Width | 5.3 mm |
| Brand | Texas Instruments |
| Shutdown | No Shutdown |
| GBP - Gain Bandwidth Product | - |
| Operating Supply Voltage | 4.75 V to 5.25 V |
| Product Type | Analog Comparators |
| Reference Voltage | No |
| Factory Pack Quantity | 2000 |
| Subcategory | Amplifier ICs |
| Vcm - Common Mode Voltage | 0 V to 5.5 V |
| Unit Weight | 0.004325 oz |
For more information, please refer to datasheet
Documents
| TL712CPSR Datasheet |
More Information
The TL712 is a high-speed comparator fabricated with bipolar Schottky process technology. The circuit has differential analog inputs and complementary 3-state TTL-compatible logic outputs with symmetrical switching characteristics. When the output enable (OE) is low, both outputs are in the high-impedance state. This device operates from a single 5-V supply and is useful as a disk memory read-chain data comparator.
