Texas Instruments
TL720M05QPWPRQ1
TL720M05QPWPRQ1
Regular price
$0.54 USD
Regular price
Sale price
$0.54 USD
Unit price
per
Couldn't load pickup availability
TL720M05QPWPRQ1 Texas Instruments - Yeehing Electronics
Automotive 450-mA, off-battery (42-V), low-dropout voltage regulator with reverse voltage protection
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.912 |
| 100 — 249 | 1.471 |
| 250 — 999 | 1.083 |
| 1,000 + | 0.54 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LDO Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |

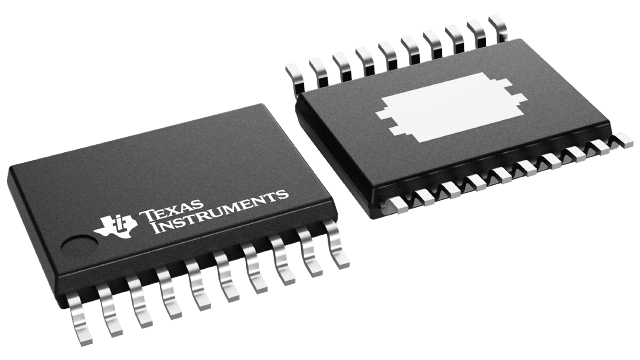

| Package / Case | HTSSOP-20 |
| Output Voltage | 5 V |
| Output Current | 950 mA |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 42 V |
| Input Voltage MIN | 5.5 V |
| Output Type | Fixed |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Dropout Voltage | 250 mV |
| Qualification | AEC-Q100 |
| Series | TL720M05-Q1 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Brand | Texas Instruments |
| Dropout Voltage - Max | 500 mV |
| PSRR / Ripple Rejection - Typ | 60 dB |
| Line Regulation | 5 mV |
| Load Regulation | 15 mV |
| Moisture Sensitive | Yes |
| Operating Supply Current | 12 mA |
| Product Type | LDO Voltage Regulators |
| Factory Pack Quantity | 2000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.002885 oz |
For more information, please refer to datasheet
Documents
| TL720M05QPWPRQ1 Datasheet |
More Information
The TL720M05-Q1 devices are monolithic integrated low-dropout voltage regulators offered in 3-pin TO packages. They regulate an input voltage up to 45 V to VOUT of 5 V with 2% tolerance. The devices can drive loads up to 450 mA and are short-circuit proof. At overtemperature, the incorporated temperature protection turns off the TL720M05-Q1 devices.
