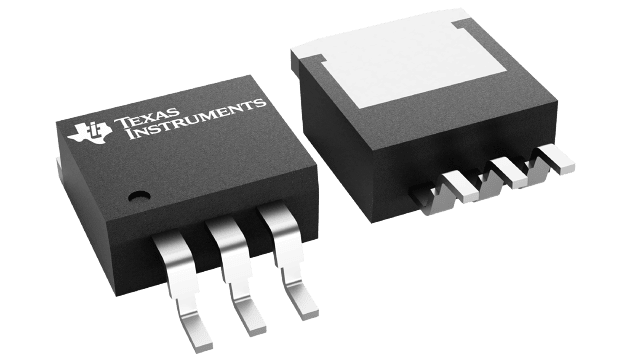

TL750M05CKTTR Texas Instruments - Yeehing Electronics

750-mA, 26-V, low-dropout voltage regulator

Pricing (USD)

Quantity	Unit Price
1 — 99	1.156
100 — 249	0.889
250 — 999	0.655
1,000 +	0.33

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LDO Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	TO-263-3
Output Voltage	5 V
Output Current	750 mA
Number of Outputs	1 Output
Polarity	Positive
Input Voltage MAX	26 V
Input Voltage MIN	6 V
Output Type	Fixed
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 125 C
Dropout Voltage	600 mV
Series	TL750M05
Packaging	Reel
Height	4.44 mm
Length	10.18 mm
Operating Temperature Range	0 C to + 125 C
Width	8.41 mm
Brand	Texas Instruments
Dropout Voltage - Max	500 mV at 500 mA
Ib - Input Bias Current	60 mA
Line Regulation	50 mV
Load Regulation	50 mV
Moisture Sensitive	Yes
Operating Supply Current	5 mA
Product Type	LDO Voltage Regulators
Factory Pack Quantity	500
Subcategory	PMIC - Power Management ICs
Unit Weight	0.050897 oz

For more information, please refer to datasheet

Documents

TL750M05CKTTR Datasheet

More Information

The TL750M series devices are low-dropout positive voltage regulators specifically designed for battery-powered systems. The TL750M devices incorporate onboard overvoltage and current-limiting protection circuitry to protect the devices and the regulated system. The devices are fully protected against 60-V load-dump and reverse-battery conditions. Extremely low quiescent current, even during full-load conditions, makes the TL750M series ideal for standby power systems.
