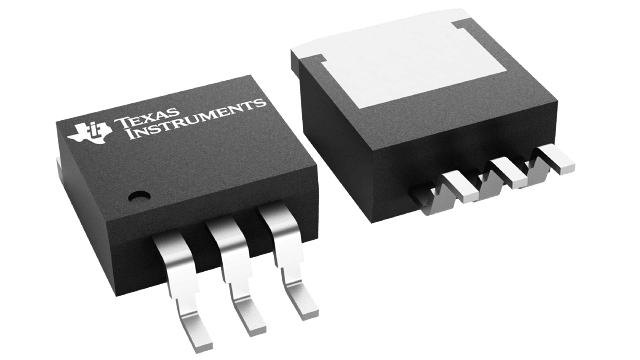

TL750M05QKTTRQ1 Texas Instruments - Yeehing Electronics

Automotive 750-mA, 26-V, low-dropout voltage regulator

Pricing (USD)

Quantity	Unit Price
1 — 99	1.476
100 — 249	1.219
250 — 999	0.876
1,000 +	0.46

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LDO Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	TO-263-3
Output Voltage	5 V
Output Current	750 mA
Number of Outputs	1 Output
Polarity	Positive
Input Voltage MAX	26 V
Input Voltage MIN	6 V
Output Type	Fixed
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Dropout Voltage	600 mV
Qualification	AEC-Q100
Series	TL750M05-Q1
Packaging	Reel
Height	4.44 mm
Length	10.18 mm
Operating Temperature Range	- 40 C to + 125 C
Width	8.41 mm
Brand	Texas Instruments
Dropout Voltage - Max	500 mV at 500 mA
Ib - Input Bias Current	60 mA
Line Regulation	50 mV
Load Regulation	50 mV
Moisture Sensitive	Yes
Operating Supply Current	5 mA
Product Type	LDO Voltage Regulators
Factory Pack Quantity	500
Subcategory	PMIC - Power Management ICs
Unit Weight	0.050897 oz

For more information, please refer to datasheet

Documents

TL750M05QKTTRQ1 Datasheet

More Information

The TL750M and TL751M series are low-dropout positive voltage regulators specifically designed for automotive applications. The TL750M and TL751M series incorporate onboard overvoltage and current-limiting protection circuitry to protect the devices and the regulated system. Both series are fully protected against load-dump and reverse-battery conditions. Load-dump protection is up to a maximum of 60 V at the input of the device. Low quiescent current, even during full-load conditions, makes the TL750M and TL751M series ideal for use in applications that are permanently connected to the vehicle battery.
