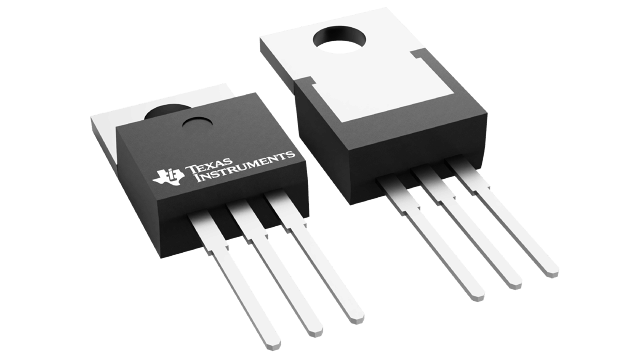

TL750M12CKCSE3 Texas Instruments - Yeehing Electronics

750-mA, 26-V, low-dropout voltage regulator

Pricing (USD)

Quantity	Unit Price
1 — 99	1.166
100 — 249	0.897
250 — 999	0.66
1,000 +	0.33

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LDO Voltage Regulators
RoHS	Y
Mounting Style	Through Hole
Package / Case	TO-220-3
Output Voltage	12 V
Output Current	750 mA
Number of Outputs	1 Output
Polarity	Positive
Input Voltage MAX	26 V
Input Voltage MIN	13 V
Output Type	Fixed
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 125 C
Dropout Voltage	600 mV
Series	TL750M12
Packaging	Tube
Height	8.7 mm
Length	10.16 mm
Operating Temperature Range	0 C to + 125 C
Width	4.58 mm
Brand	Texas Instruments
Dropout Voltage - Max	500 mV at 500 mA
Output Voltage Range	-
Ib - Input Bias Current	60 mA
Line Regulation	78 mV
Load Regulation	120 mV
Operating Supply Current	5 mA
Product Type	LDO Voltage Regulators
Factory Pack Quantity	50
Subcategory	PMIC - Power Management ICs
Unit Weight	0.067197 oz

For more information, please refer to datasheet

Documents

TL750M12CKCSE3 Datasheet

More Information

The TL750M series devices are low-dropout positive voltage regulators specifically designed for battery-powered systems. The TL750M devices incorporate onboard overvoltage and current-limiting protection circuitry to protect the devices and the regulated system. The devices are fully protected against 60-V load-dump and reverse-battery conditions. Extremely low quiescent current, even during full-load conditions, makes the TL750M series ideal for standby power systems.
