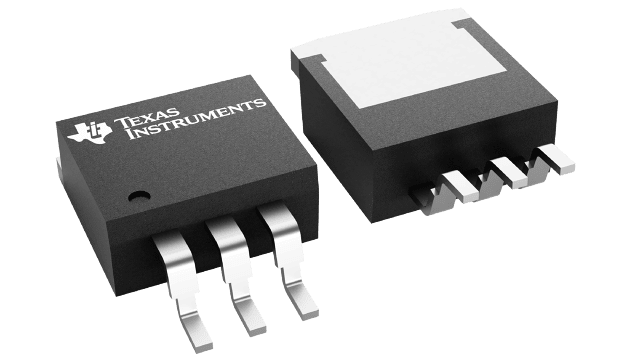

TL760M33QKTTRQ1 Texas Instruments - Yeehing Electronics
Automotive 500-mA, 26-V, high-accuracy, low-dropout voltage regulator
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.378 |
100 — 249 | 1.138 |
250 — 999 | 0.817 |
1,000 + | 0.43 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
TL760M33QKTTRQ1 Datasheet |
More Information
The TL760M family of low-dropout regulators offers a variety of fixed-voltage options that offer a maximum continuous input voltage of 26 V. Utilizing a pnp pass element, these regulators are capable of sourcing 500 mA of current, with a specified maximum dropout of 500 mV (3.3-V and 2.5-V options), making these regulators ideal for low-voltage applications. Additionally, the TL760M regulators offer very tight output accuracy of ±3% across operating load and temperature ranges. Other convenient features the regulators provide are internal overcurrent limiting, thermal-overload protection, and overvoltage protection. The TL760M is load-dump protected to its maximum operating condition of 45 V. Stability has been optimized for typical automotive applications and low-cost capacitors.
