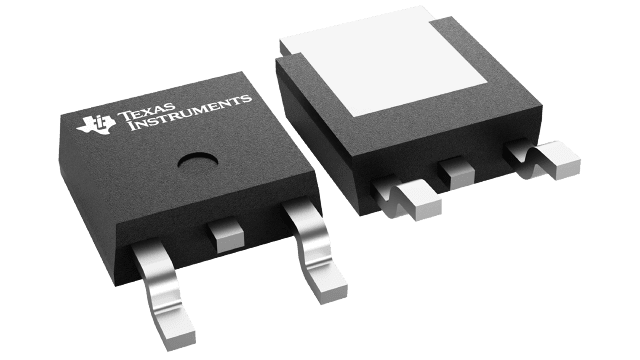

TL760M33QKVURQ1 Texas Instruments - Yeehing Electronics
Automotive 500-mA, 26-V, high-accuracy, low-dropout voltage regulator
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.252 |
100 — 249 | 0.963 |
250 — 999 | 0.709 |
1,000 + | 0.29 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | LDO Voltage Regulators |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | TO-252-3 |
Output Voltage | 3.3 V |
Output Current | 500 mA |
Number of Outputs | 1 Output |
Polarity | Positive |
Input Voltage MAX | 26 V |
Input Voltage MIN | 3 V |
Output Type | Fixed |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Dropout Voltage | 500 mV |
Qualification | AEC-Q100 |
Series | TL760M33-Q1 |
Packaging | Reel |
Height | 2.3 mm |
Length | 6.6 mm |
Operating Temperature Range | - 40 C to + 125 C |
Width | 6.1 mm |
Brand | Texas Instruments |
Dropout Voltage - Max | 400 mV at 250 mA |
Voltage Regulation Accuracy | 3 % |
Line Regulation | 25 mV |
Load Regulation | 30 mV |
Moisture Sensitive | Yes |
Operating Supply Current | 20 mA |
Product Type | LDO Voltage Regulators |
Factory Pack Quantity | 2500 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.011598 oz |
For more information, please refer to datasheet
Documents
TL760M33QKVURQ1 Datasheet |
More Information
The TL760M family of low-dropout regulators offers a variety of fixed-voltage options that offer a maximum continuous input voltage of 26 V. Utilizing a pnp pass element, these regulators are capable of sourcing 500 mA of current, with a specified maximum dropout of 500 mV (3.3-V and 2.5-V options), making these regulators ideal for low-voltage applications. Additionally, the TL760M regulators offer very tight output accuracy of ±3% across operating load and temperature ranges. Other convenient features the regulators provide are internal overcurrent limiting, thermal-overload protection, and overvoltage protection. The TL760M is load-dump protected to its maximum operating condition of 45 V. Stability has been optimized for typical automotive applications and low-cost capacitors.
