TL7759CPSR


YeeHing #: Y012-TL7759CPSR
Inventory: 8000

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

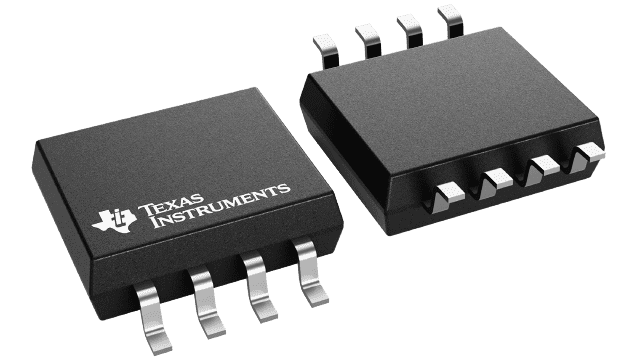

TL7759CPSR Texas Instruments - Yeehing Electronics

4-pin supervisor for 5-V systems

Pricing (USD)

Quantity Unit Price
1 — 99 0.613
100 — 249 0.471
250 — 999 0.347
1,000 + 0.17

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Supervisory Circuits
RoHS Y
Type Voltage Supervisory
Mounting Style SMD/SMT
Package / Case SO-8
Threshold Voltage 4.55 V
Number of Inputs Monitored 1 Input
Output Type Active-high,Active-low,Open-drain
Manual Reset No Manual Reset
Watchdog Timers No Watchdog
Supply Voltage - Max 7 V
Minimum Operating Temperature 0 C
Maximum Operating Temperature + 70 C
Series TL7759
Packaging Reel
Features Internal Hysteresis
Height 1.95 mm
Length 6.2 mm
Operating Temperature Range 0 C to + 70 C
Width 5.3 mm
Brand Texas Instruments
Overvoltage Threshold 4.67 V
Undervoltage Threshold 4.55 V
Operating Supply Current 1400 uA
Product Type Supervisory Circuits
Factory Pack Quantity 2000
Subcategory PMIC - Power Management ICs
Supply Voltage - Min 1 V
Unit Weight 0.004325 oz

For more information, please refer to datasheet

Documents

TL7759CPSR Datasheet

More Information

The TL7759 is a supply-voltage supervisor designed for use as a reset controller in microcomputer and microprocessor systems. The supervisor monitors the supply voltage for undervoltage conditions. During power up, when the supply voltage, VCC, attains a value approaching 1 V, the RESET and RESET outputs become active (high and low, respectively) to prevent undefined operation. If the supply voltage drops below the input threshold voltage level (VIT-), the reset outputs go to the reset active state until the supply voltage has returned to its nominal value (see timing diagram).
