Description

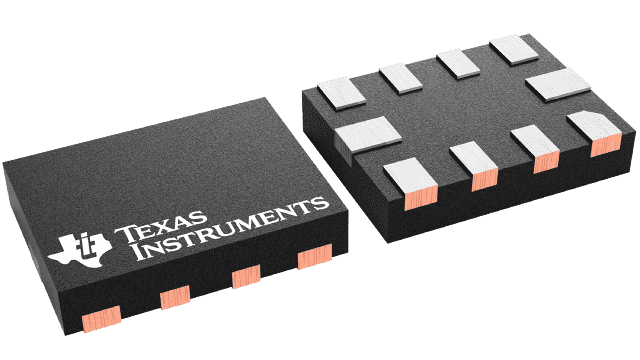

TLA2021IRUGR Texas Instruments - Yeehing Electronics
12-Bit 1-Ch Delta-Sigma ADC w/ Voltage Reference, Oscillator, and I2C for Low-Cost Applications
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.223 |
| 100 — 249 | 0.941 |
| 250 — 999 | 0.693 |
| 1,000 + | 0.35 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | TLA2021 |
| Package / Case | X2QFN-10 |
| Digital Supply Voltage | 2 V to 5.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Features | Oscillator |
| Power Consumption | 0.3 mW |
| Brand | Texas Instruments |
| Product Type | ADCs - Analog to Digital Converters |
| Factory Pack Quantity | 3000 |
| Subcategory | Data Converter ICs |
For more information, please refer to datasheet
Documents
| TLA2021IRUGR Datasheet |
More Information
The TLA2021, TLA2022, and TLA2024 devices (TLA202x) are easy-to-use, low-power, 12-bit delta-sigma (ΔΣ) analog-to-digital converters (ADCs) targeted for any type of system-monitoring applications (such as supply or battery voltage supervision, current sensing, or temperature measurements). Offered in an ultra-small, leadless, 10-pin X2QFN package, the TLA2021 and TLA2022 are single-channel ADCs while the TLA2024 features a flexible input multiplexer (MUX) with two differential or four single-ended input measurement options.
