Description

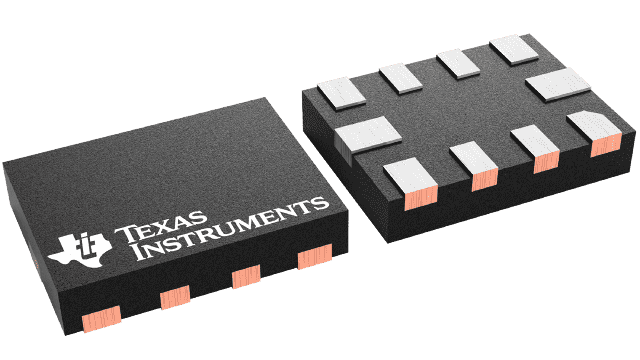

TLA2021IRUGT Texas Instruments - Yeehing Electronics
12-Bit 1-Ch Delta-Sigma ADC w/ Voltage Reference, Oscillator, and I2C for Low-Cost Applications
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.467 |
| 100 — 249 | 1.129 |
| 250 — 999 | 0.831 |
| 1,000 + | 0.42 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | TLA2021 |
| Mounting Style | SMD/SMT |
| Package / Case | X2QFN-10 |
| Resolution | 12 bit |
| Number of Channels | 1 Channel |
| Sampling Rate | 3.3 kS/s |
| Input Type | Differential/Single-Ended |
| Interface Type | I2C |
| Architecture | Sigma-Delta |
| Reference Type | Internal |
| Analog Supply Voltage | 2 V to 5.5 V |
| Digital Supply Voltage | 2 V to 5.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Features | Oscillator |
| Number of Converters | 1 Converter |
| Power Consumption | 0.3 mW |
| Type | System Monitoring ADCs |
| Brand | Texas Instruments |
| Shutdown | No Shutdown |
| Development Kit | TLA2021 IBIS |
| Gain Error | 0.05 % |
| INL - Integral Nonlinearity | 1 LSB |
| Pd - Power Dissipation | 0.9 mW |
| Product Type | ADCs - Analog to Digital Converters |
| Factory Pack Quantity | 250 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.000088 oz |
For more information, please refer to datasheet
Documents
| TLA2021IRUGT Datasheet |
More Information
The TLA2021, TLA2022, and TLA2024 devices (TLA202x) are easy-to-use, low-power, 12-bit delta-sigma (ΔΣ) analog-to-digital converters (ADCs) targeted for any type of system-monitoring applications (such as supply or battery voltage supervision, current sensing, or temperature measurements). Offered in an ultra-small, leadless, 10-pin X2QFN package, the TLA2021 and TLA2022 are single-channel ADCs while the TLA2024 features a flexible input multiplexer (MUX) with two differential or four single-ended input measurement options.
