TLA2022IRUGR Texas Instruments - Yeehing Electronics

12-Bit 1-Ch Delta-Sigma ADC w/ Voltage Reference, Oscillator, PGA, and I2C for Low-Cost Applications

Pricing (USD)

Quantity	Unit Price
1 — 99	1.109
100 — 249	0.916
250 — 999	0.658
1,000 +	0.35

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Analog to Digital Converters - ADC
RoHS	Y
Series	TLA2022

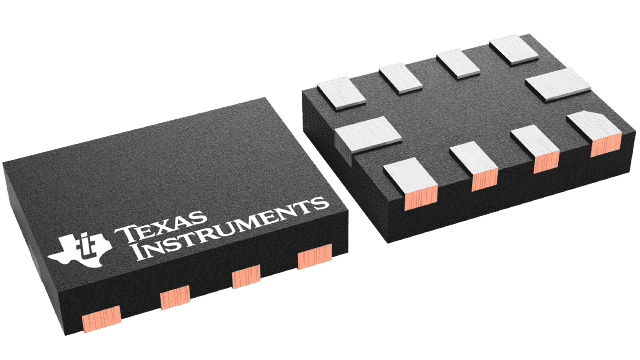

Package / Case	X2QFN-10
Digital Supply Voltage	2 V to 5.5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Features	Oscillator, PGA
Power Consumption	0.3 mW
Brand	Texas Instruments
Product Type	ADCs - Analog to Digital Converters
Factory Pack Quantity	3000
Subcategory	Data Converter ICs

For more information, please refer to datasheet

Documents

TLA2022IRUGR Datasheet

More Information

The TLA2021, TLA2022, and TLA2024 devices (TLA202x) are easy-to-use, low-power, 12-bit delta-sigma (ΔΣ) analog-to-digital converters (ADCs) targeted for any type of system-monitoring applications (such as supply or battery voltage supervision, current sensing, or temperature measurements). Offered in an ultra-small, leadless, 10-pin X2QFN package, the TLA2021 and TLA2022 are single-channel ADCs while the TLA2024 features a flexible input multiplexer (MUX) with two differential or four single-ended input measurement options.
