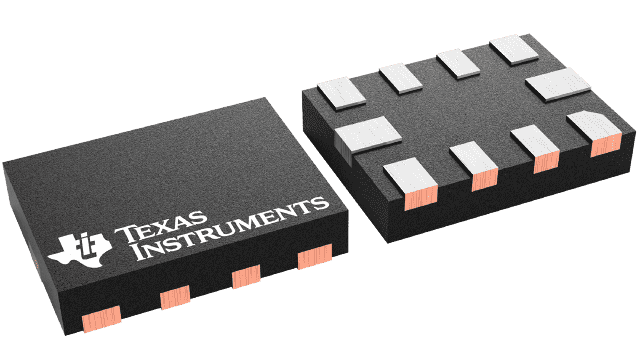

TLA2022IRUGT Texas Instruments - Yeehing Electronics

12-Bit 1-Ch Delta-Sigma ADC w/ Voltage Reference, Oscillator, PGA, and I2C for Low-Cost Applications

Pricing (USD)

Quantity	Unit Price
1 — 99	1.331
100 — 249	1.099
250 — 999	0.789
1,000 +	0.34

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Analog to Digital Converters - ADC
RoHS	Y
Series	TLA2022
Mounting Style	SMD/SMT
Package / Case	X2QFN-10
Resolution	12 bit
Number of Channels	1 Channel
Sampling Rate	3.3 kS/s
Input Type	Differential/Single-Ended
Interface Type	I2C
Architecture	Sigma-Delta
Reference Type	Internal
Analog Supply Voltage	2 V to 5.5 V
Digital Supply Voltage	2 V to 5.5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Features	Oscillator, PGA
Number of Converters	1 Converter
Power Consumption	0.3 mW
Type	System Monitoring ADCs
Brand	Texas Instruments
Shutdown	No Shutdown
Development Kit	TLA2022 IBIS
Gain Error	0.05 %
INL - Integral Nonlinearity	1 LSB
Pd - Power Dissipation	0.9 mW
Product Type	ADCs - Analog to Digital Converters
Factory Pack Quantity	250
Subcategory	Data Converter ICs
Unit Weight	0.000088 oz

For more information, please refer to datasheet

Documents

TLA2022IRUGT Datasheet

More Information

The TLA2021, TLA2022, and TLA2024 devices (TLA202x) are easy-to-use, low-power, 12-bit delta-sigma (ΔΣ) analog-to-digital converters (ADCs) targeted for any type of system-monitoring applications (such as supply or battery voltage supervision, current sensing, or temperature measurements). Offered in an ultra-small, leadless, 10-pin X2QFN package, the TLA2021 and TLA2022 are single-channel ADCs while the TLA2024 features a flexible input multiplexer (MUX) with two differential or four single-ended input measurement options.
