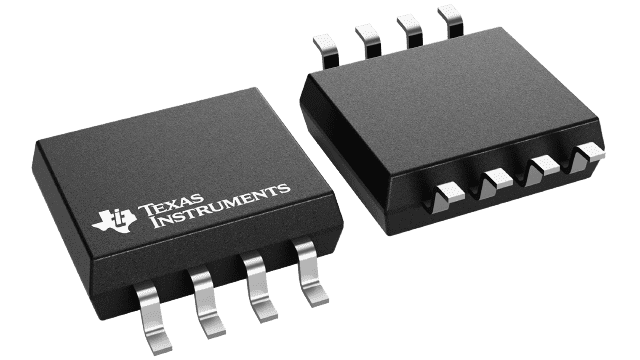

TLC2272CPSR Texas Instruments - Yeehing Electronics
Dual, Low-Noise, Rail-To-Rail Operational Amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.599 |
| 100 — 249 | 1.321 |
| 250 — 999 | 0.949 |
| 1,000 + | 0.57 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Operational Amplifiers - Op Amps |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | SO-8 |
| Supply Voltage - Max | 16 V |
| Output Current per Channel | 50 mA |
| Number of Channels | 2 Channel |
| GBP - Gain Bandwidth Product | 2.18 MHz |
| SR - Slew Rate | 3.6 V/us |
| CMRR - Common Mode Rejection Ratio | 70 dB to 75 dB |
| Ib - Input Bias Current | 60 pA |
| Vos - Input Offset Voltage | 2.5 mV |
| Supply Voltage - Min | 4.4 V |
| Operating Supply Current | 1.1 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Shutdown | No Shutdown |
| Series | TLC2272 |
| Packaging | Reel |
| Amplifier Type | Low Noise Amplifier |
| Features | High Cload Drive |
| Height | 1.95 mm |
| Input Type | Rail-to-Rail |
| Length | 6.2 mm |
| Output Type | Rail-to-Rail |
| Product | Operational Amplifiers |
| Supply Type | Single, Dual |
| Technology | LinCMOS |
| Width | 5.3 mm |
| Brand | Texas Instruments |
| Dual Supply Voltage | +/- 3 V, +/- 5 V |
| en - Input Voltage Noise Density | 50 nV/sqrt Hz |
| In - Input Noise Current Density | 0.0006 pA/sqrt Hz |
| Maximum Dual Supply Voltage | +/- 8 V |
| Minimum Dual Supply Voltage | +/- 2.2 V |
| Operating Supply Voltage | 4.4 V to 16 V, +/- 2.2 V to +/- 8 V |
| Product Type | Op Amps - Operational Amplifiers |
| Factory Pack Quantity | 2000 |
| Subcategory | Amplifier ICs |
| Vcm - Common Mode Voltage | Negative Rail to Positive Rail - 1 V |
| Voltage Gain dB | 104.86 dB |
| Unit Weight | 0.004325 oz |
For more information, please refer to datasheet
Documents
| TLC2272CPSR Datasheet |
More Information
The TLC2272 and TLC2274 are dual and quadruple operational amplifiers from Texas Instruments. Both devices exhibit rail-to-rail output performance for increased dynamic range in single- or split-supply applications. The TLC227x family offers 2 MHz of bandwidth and 3 V/µs of slew rate for higher-speed applications. These devices offer comparable AC performance while having better noise, input offset voltage, and power dissipation than existing CMOS operational amplifiers. The TLC227x has a noise voltage of 9 nV/√Hz, two times lower than competitive solutions.
