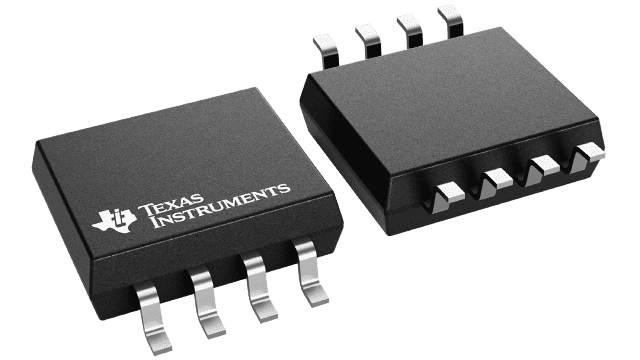

TLC27L2ACPS Texas Instruments - Yeehing Electronics
Dual, 16-V, 85-kHz, low power (10-μA/ch), 5-mV offset voltage, In to V- operational amplifier
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.26 |
100 — 249 | 0.969 |
250 — 999 | 0.713 |
1,000 + | 0.36 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Precision Amplifiers |
RoHS | Y |
Series | TLC27L2A |
Number of Channels | 2 Channel |
GBP - Gain Bandwidth Product | 110 kHz |
SR - Slew Rate | 0.04 V/us |
CMRR - Common Mode Rejection Ratio | 65 dB |
Ib - Input Bias Current | 60 pA |
Vos - Input Offset Voltage | 5 mV |
en - Input Voltage Noise Density | 68 nV/sqrt Hz |
Supply Voltage - Max | 16 V |
Supply Voltage - Min | 3 V |
Operating Supply Current | 17 uA |
Minimum Operating Temperature | 0 C |
Maximum Operating Temperature | + 70 C |
Shutdown | No Shutdown |
Mounting Style | SMD/SMT |
Package / Case | SO-8 |
Packaging | Tube |
Amplifier Type | CMOS Amplifier |
Height | 1.95 mm |
Length | 6.2 mm |
Product | Precision Amplifiers |
Supply Type | Single |
Technology | LinCMOS |
Width | 5.3 mm |
Brand | Texas Instruments |
Ios - Input Offset Current | 60 pA |
Operating Supply Voltage | 3 V to 16 V |
Pd - Power Dissipation | 1 W |
Product Type | Precision Amplifiers |
Factory Pack Quantity | 80 |
Subcategory | Amplifier ICs |
Voltage Gain dB | 116.9 dB |
Unit Weight | 0.004325 oz |
For more information, please refer to datasheet
Documents
TLC27L2ACPS Datasheet |
More Information
The TLC27L2 and TLC27L7 dual operational amplifiers combine a wide range of input offset voltage grades with low offset voltage drift, high input impedance, extremely low power, and high gain.
