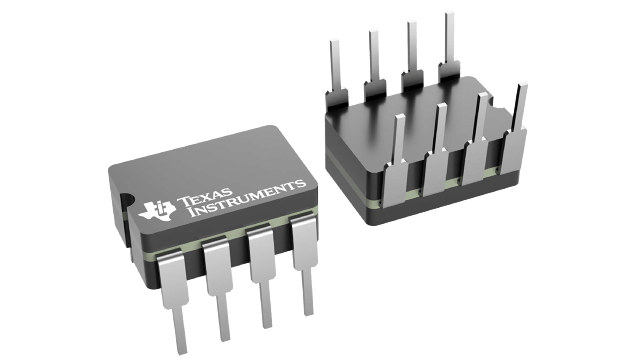

TLC3702MJGB Texas Instruments - Yeehing Electronics

Low-Power LinCMOS™ Dual Comparator with Totem Pole Output

Pricing (USD)

Quantity	Unit Price
1 — 99	27.719
100 — 249	24.212
250 — 999	18.668
1,000 +	11.69

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

TLC3702MJGB Datasheet

More Information

The TLC3702 consists of two independent micropower voltage comparators designed to operate from a single supply and be compatible with modern HCMOS logic systems. They are functionally similar to the LM339 but use one-twentieth of the power for similar response times. The push-pull CMOS output stage drives capacitive loads directly without a power-consuming pullup resistor to achieve the stated response time. Eliminating the pullup resistor not only reduces power dissipation, but also saves board space and component cost. The output stage is also fully compatible with TTL requirements.
