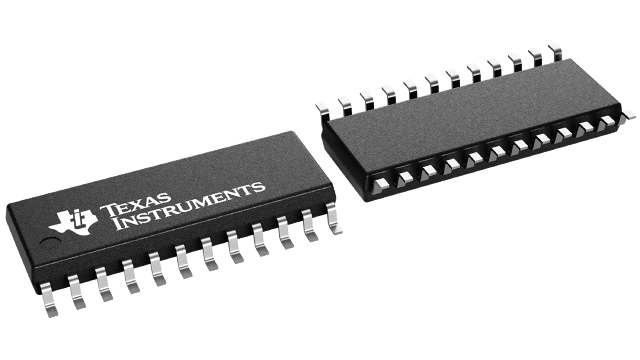

TLC5510AINS Texas Instruments - Yeehing Electronics
8-bit, 20-MSPS analog-to-digital converter (ADC) with 4-Vpp input
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 7.34 |
| 100 — 249 | 5.984 |
| 250 — 999 | 4.703 |
| 1,000 + | 2.79 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | TLC5510A |
| Mounting Style | SMD/SMT |
| Package / Case | SOP-24 |
| Resolution | 8 bit |
| Number of Channels | 1 Channel |
| Sampling Rate | 20 MS/s |
| Input Type | Single-Ended |
| Interface Type | Parallel |
| Architecture | Half-Flash |
| Reference Type | External, Internal |
| Analog Supply Voltage | 4.75 V to 5.25 V |
| Digital Supply Voltage | 4.75 V to 5.25 V |
| SNR - Signal to Noise Ratio | 46 dB |
| Minimum Operating Temperature | - 20 C |
| Maximum Operating Temperature | + 75 C |
| Packaging | Tube |
| Height | 1.95 mm |
| Length | 15 mm |
| Number of Converters | 1 Converter |
| Power Consumption | 150 mW |
| Width | 5.3 mm |
| Brand | Texas Instruments |
| DNL - Differential Nonlinearity | +/- 0.75 LSB |
| ENOB - Effective Number of Bits | 6.8 Bit |
| INL - Integral Nonlinearity | +/- 1 LSB |
| Operating Supply Voltage | 4.75 V to 5.25 V |
| Product Type | ADCs - Analog to Digital Converters |
| SFDR - Spurious Free Dynamic Range | 42 dB |
| SINAD - Signal to Noise and Distortion Ratio | 44 dB |
| Factory Pack Quantity | 34 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.010857 oz |
For more information, please refer to datasheet
Documents
| TLC5510AINS Datasheet |
More Information
The TLC5510 and TLC5510A are CMOS, 8-bit, 20 MSPS analog-to-digital converters (ADCs) that utilize a semiflash architecture. The TLC5510 and TLC5510A operate with a single 5-V supply and typically consume only 130 mW of power. Included is an internal sample-and-hold circuit, parallel outputs with high-impedance mode, and internal reference resistors.
