TLC5540INSR Texas Instruments - Yeehing Electronics

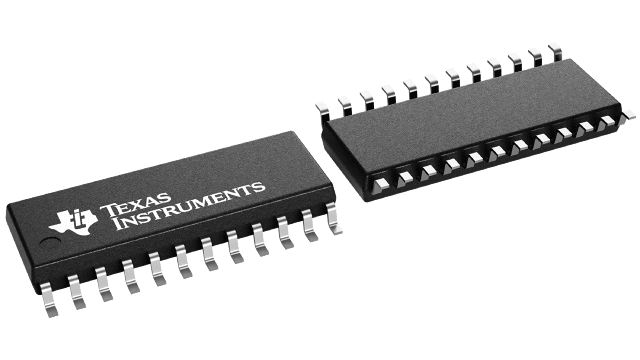

8-Bit, 40-MSPS Analog-to-Digital Converter (ADC)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 6.902 |
| 100 — 249 | 5.627 |
| 250 — 999 | 4.422 |
| 1,000 + | 2.63 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | TLC5540 |
| Mounting Style | SMD/SMT |
| Package / Case | SOP-24 |
| Resolution | 8 bit |
| Number of Channels | 1 Channel |
| Sampling Rate | 40 MS/s |
| Input Type | Single-Ended |
| Interface Type | Parallel |
| Architecture | Half-Flash |
| Reference Type | External, Internal |
| Analog Supply Voltage | 4.75 V to 5.25 V |
| Digital Supply Voltage | 4.75 V to 5.25 V |
| SNR - Signal to Noise Ratio | 44 dB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Height | 1.95 mm |
| Length | 15 mm |
| Number of Converters | 1 Converter |
| Power Consumption | 85 mW |
| Width | 5.3 mm |
| Brand | Texas Instruments |
| Development Kit | TLC5540EVM |
| DNL - Differential Nonlinearity | +/- 1 LSB |
| ENOB - Effective Number of Bits | 6.8 Bit |
| INL - Integral Nonlinearity | +/- 1 LSB |
| Operating Supply Voltage | 4.75 V to 5.25 V |
| Product Type | ADCs - Analog to Digital Converters |
| SFDR - Spurious Free Dynamic Range | 42 dB |
| SINAD - Signal to Noise and Distortion Ratio | 43.3 dB |
| Factory Pack Quantity | 2000 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.010857 oz |
For more information, please refer to datasheet
Documents
| TLC5540INSR Datasheet |
More Information
The TLC5540 is a high-speed, 8-bit analog-to-digital converter (ADC) that converts at sampling rates up to 40 megasamples per second (MSPS). Using a semiflash architecture and CMOS process, the TLC5540 is able to convert at high speeds while still maintaining low power consumption and cost. The analog input bandwidth of 75 MHz (typ) makes this device an excellent choice for undersampling applications. Internal resistors are provided to generate 2-V full-scale reference voltages from a 5-V supply, thereby reducing external components. The digital outputs can be placed in a high impedance mode. The TLC5540 requires only a single 5-V supply for operation.
