TLC555CP Texas Instruments - Yeehing Electronics

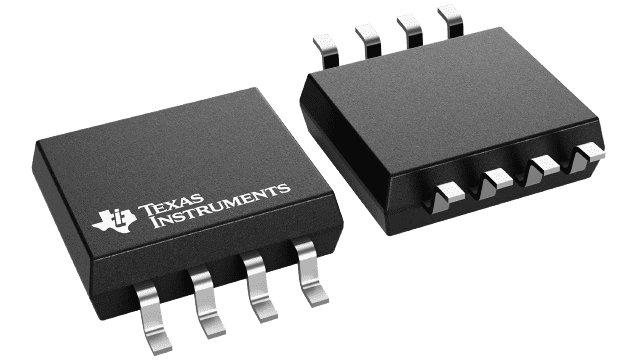

2.1-MHz, 250-µA, Low-Power Timer

Pricing (USD)

Quantity	Unit Price
1 — 99	0.684
100 — 249	0.526
250 — 999	0.388
1,000 +	0.19

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Timers & Support Products
RoHS	Y
Series	TLC555
Type	Standard
Number of Internal Timers	1 Timer
Supply Voltage - Max	15 V
Supply Voltage - Min	2 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	Through Hole
Package / Case	PDIP-8
Packaging	Tube
Height	4.57 mm
Length	9.81 mm
Width	6.35 mm
Brand	Texas Instruments
High Level Output Current	100 mA
Low Level Output Current	- 10 mA
Operating Supply Current	250 uA
Pd - Power Dissipation	1000 mW
Product Type	Timers & Support Products
Factory Pack Quantity	50
Subcategory	Clock & Timer ICs
Tradename	LinCMOS
Unit Weight	0.015535 oz

For more information, please refer to datasheet

Documents

TLC555CP Datasheet

More Information

The TLC555 is a monolithic timing circuit fabricated using the TI LinCMOS™ process. The timer is fully compatible with CMOS, TTL, and MOS logic and operates at frequencies up to 2 MHz. Because of its high input impedance, this device supports smaller timing capacitors than those supported by the NE555 or LM555. As a result, more accurate time delays and oscillations are possible. Power consumption is low across the full range of power-supply voltage.
