TLC555CPS Texas Instruments - Yeehing Electronics

2.1-MHz, 250-µA, Low-Power Timer

Pricing (USD)

Quantity	Unit Price
1 — 99	0.632
100 — 249	0.486
250 — 999	0.358
1,000 +	0.18

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Timers & Support Products
RoHS	Y
Series	TLC555
Type	Standard
Number of Internal Timers	1 Timer
Supply Voltage - Max	15 V
Supply Voltage - Min	2 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT

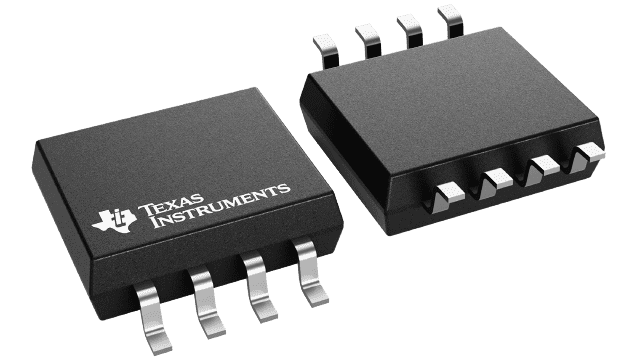

Package / Case	SO-8
Packaging	Reel
Height	1.95 mm
Length	6.2 mm
Width	5.3 mm
Brand	Texas Instruments
High Level Output Current	100 mA
Low Level Output Current	- 10 mA
Operating Supply Current	250 uA
Pd - Power Dissipation	1000 mW
Product Type	Timers & Support Products
Factory Pack Quantity	2000
Subcategory	Clock & Timer ICs
Tradename	LinCMOS
Unit Weight	0.004325 oz

For more information, please refer to datasheet

Documents

TLC555CPS Datasheet

More Information

The TLC555 is a monolithic timing circuit fabricated using the TI LinCMOS™ process. The timer is fully compatible with CMOS, TTL, and MOS logic and operates at frequencies up to 2 MHz. Because of its high input impedance, this device supports smaller timing capacitors than those supported by the NE555 or LM555. As a result, more accurate time delays and oscillations are possible. Power consumption is low across the full range of power-supply voltage.
