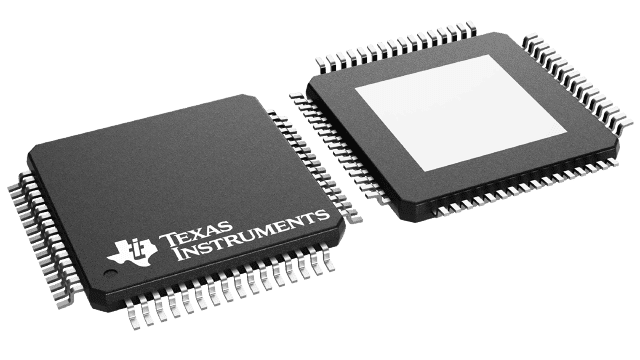

TLC5905PAP Texas Instruments - Yeehing Electronics
8/16 channel LED driver with Selectable Data Output Timing
Pricing (USD)
Quantity | Unit Price |
1 — 99 | None |
100 — 249 | None |
250 — 999 | None |
1,000 + | None |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | LED Lighting Drivers |
RoHS | Y |
Number of Channels | 16 Channel |
Output Current | 120 mA |
Input Voltage | 4.5 V to 5.5 V |
Operating Frequency | 15 MHz |
Supply Current - Max | 70 mA |
Minimum Operating Temperature | - 20 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | HTQFP-64 |
Series | TLC5905 |
Packaging | Tray |
Features | Error Flag, Power Good, Thermal Shutdown |
Operating Temperature Range | - 20 C to + 85 C |
Output Type | Constant Current |
Type | Linear |
Brand | Texas Instruments |
Topology | Boost |
High Level Output Current | - 1 mA |
Low Level Output Current | 1 mA |
Moisture Sensitive | Yes |
Operating Supply Voltage | 4.5 V to 5.5 V |
Pd - Power Dissipation | 4.9 W |
Product Type | LED Lighting Drivers |
Factory Pack Quantity | 160 |
Subcategory | Driver ICs |
Unit Weight | 0.009108 oz |
For more information, please refer to datasheet
Documents
TLC5905PAP Datasheet |
More Information
The TLC5905 is a constant current driver that incorporates shift register, data latch, constant current circuitry with a current value adjustable and 256 gray scale display that uses pulse width control. The output current can be selected as maximum 80 mA with 16 bits or 120 mA with 8 bit. The current value of the constant current output is set by one external resistor. After this device is mounted on a printed-circuit board (PCB), the brightness deviation between LED modules (ICs) can be adjusted using an external data input, and the brightness control for the panel can be accomplished by the brightness adjustment circuitry. Also, the device incorporates the output voltage monitor (OVM) used for LED open detection (LOD) by monitoring constant current output. Moreover, the device incorporates watchdog timer (WDT) circuitry, which turns constant current output off when the scan signal stops during dynamic scanning operation, and thermal shutdown (TSD) circuitry, which turns constant current output off when the junction temperature exceeds the limit.
