Texas Instruments
TLC5922DAP
TLC5922DAP
Regular price
$1.07 USD
Regular price
Sale price
$1.07 USD
Unit price
per
Couldn't load pickup availability

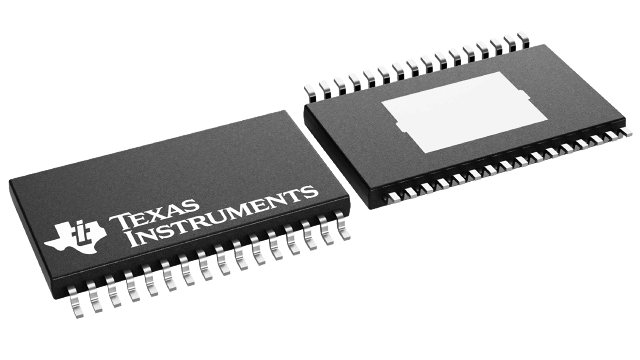

TLC5922DAP Texas Instruments - Yeehing Electronics
16-channel LED driver with 20Mhz data transfer rate with dot correctionn
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.097 |
| 100 — 249 | 2.713 |
| 250 — 999 | 1.902 |
| 1,000 + | 1.07 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LED Display Drivers |
| RoHS | Y |
| Series | TLC5922 |
| Number of Segments | 16 |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-32 |
| Operating Supply Voltage | 3 V to 5.5 V |
| Supply Current - Max | 65 mA |
| Minimum Operating Temperature | - 20 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Features | ON/OFF LED Driver |
| Height | 1.15 mm |
| Length | 11 mm |
| Operating Temperature Range | - 20 C to + 85 C |
| Product | LED Display Drivers |
| Width | 6.2 mm |
| Brand | Texas Instruments |
| High Level Output Current | - 1 mA |
| Low Level Output Current | 1 mA |
| Moisture Sensitive | Yes |
| Pd - Power Dissipation | 3.9 W |
| Product Type | LED Display Drivers |
| Factory Pack Quantity | 2000 |
| Subcategory | Driver ICs |
| Unit Weight | 0.006388 oz |
For more information, please refer to datasheet
Documents
| TLC5922DAP Datasheet |
More Information
The TLC5922 is a 16-channel constant-current sink driver. Each channel has an On/Off state and a 128-step adjustable constant-current sink (dot correction). The dot correction adjusts the brightness variations between LED, LED channels, and other LED drivers. Both dot correction and On/Off state are accessible via a serial data interface. A single external resistor sets the maximum current of all 16 channels.
