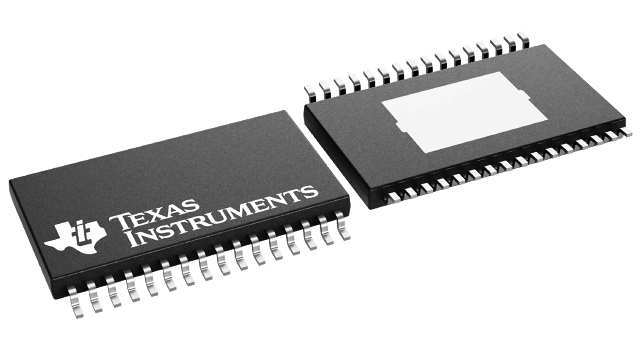

TLC5923DAPR Texas Instruments - Yeehing Electronics

16-channel LED driver with 20Mhz data transfer rate with dot correctionn and full diagnose

Pricing (USD)

Quantity	Unit Price
1 — 99	2.681
100 — 249	2.349
250 — 999	1.647
1,000 +	0.93

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LED Display Drivers
RoHS	Y
Series	TLC5923
Mounting Style	SMD/SMT
Package / Case	HTSSOP-32
Operating Supply Voltage	3 V to 5.5 V
Supply Current - Max	65 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Features	Fault Detection, LED Open Detection, ON/OFF LED Driver, Power Good/Error Flag
Operating Temperature Range	- 40 C to + 85 C
Brand	Texas Instruments
High Level Output Current	- 1 mA
Low Level Output Current	1 mA
Moisture Sensitive	Yes
Pd - Power Dissipation	3.9 W
Product Type	LED Display Drivers
Factory Pack Quantity	2000
Subcategory	Driver ICs
Part # Aliases	HPA00030DAPR
Unit Weight	0.006388 oz

For more information, please refer to datasheet

Documents

TLC5923DAPR Datasheet

More Information

The TLC5923 is a 16 channel constant-current sink driver. Each channel has a On/Off state and a 128-step adjustable constant current sink (dot correction). The dot correction adjusts the brightness variations between LED, LED channels and other LED drivers. Both dot correction and On/Off state are accessible via a serial data interface. A single external resistor sets the maximum current of all 16 channels.
