TLC5924DAP Texas Instruments - Yeehing Electronics

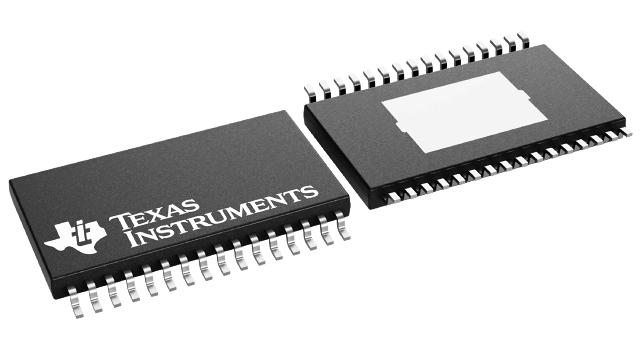

16-channel LED driver w/dot correction & pre-charge FET
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.177 |
| 100 — 249 | 2.784 |
| 250 — 999 | 1.952 |
| 1,000 + | 1.10 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LED Display Drivers |
| RoHS | Y |
| Series | TLC5924 |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-32 |
| Operating Supply Voltage | 3 V to 5.5 V |
| Supply Current - Max | 65 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Tube |
| Features | Fault Detection, LED Open Detection, ON/OFF LED Driver, Power Good/Error Flag |
| Operating Temperature Range | - 40 C to + 85 C |
| Brand | Texas Instruments |
| High Level Output Current | - 1 mA |
| Low Level Output Current | 1 mA |
| Moisture Sensitive | Yes |
| Pd - Power Dissipation | 5318 mW |
| Product Type | LED Display Drivers |
| Factory Pack Quantity | 46 |
| Subcategory | Driver ICs |
| Unit Weight | 0.006388 oz |
For more information, please refer to datasheet
Documents
| TLC5924DAP Datasheet |
More Information
The TLC5924 is a 16 channel constantcurrent sink driver. Each channel has a On/Off state and a 128step adjustable constant current sink (dot correction). The dot correction adjusts the brightness variations between LED, LED channels and other LED drivers. Both dot correction and On/Off state are accessible via a serial data interface. A single external resistor sets the maximum current of all 16 channels.
