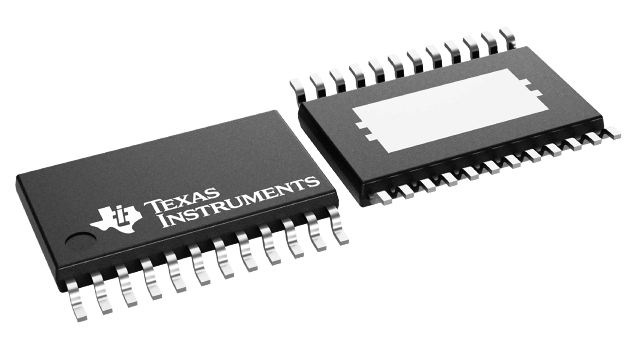

TLC5926QPWPRQ1 Texas Instruments - Yeehing Electronics
Automotive 16-bit constant-current LED sink driver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.676 |
| 100 — 249 | 1.384 |
| 250 — 999 | 0.994 |
| 1,000 + | 0.60 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LED Lighting Drivers |
| RoHS | Y |
| Number of Channels | 16 Channel |
| Output Current | 120 mA |
| Input Voltage | 3 V to 5.5 V |
| Operating Frequency | 30 MHz |
| Supply Current - Max | 20 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-24 |
| Qualification | AEC-Q100 |
| Series | TLC5926-Q1 |
| Packaging | Reel |
| Features | LED Open Detection, LED Short to Ground Detection, Thermal Shutdown |
| Operating Temperature Range | - 40 C to + 125 C |
| Output Type | Constant Current |
| Product | LED Drivers |
| Type | LED Driver |
| Brand | Texas Instruments |
| Topology | Boost |
| High Level Output Current | - 1 mA |
| Low Level Output Current | 1 mA |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 3 V to 5.5 V |
| Pd - Power Dissipation | 2.9 W |
| Product Type | LED Lighting Drivers |
| Factory Pack Quantity | 2000 |
| Subcategory | Driver ICs |
| Unit Weight | 0.006081 oz |
For more information, please refer to datasheet
Documents
| TLC5926QPWPRQ1 Datasheet |
More Information
The TLC592x-Q1 Constant-Current LED Sink Drivers is designed to work alone or cascaded. Because each output is independently controlled, they can be programmed to be on or off by the user. The high LED voltage (VLED) allows for the use of a single LED per output or multiple LEDs on a single string. With independently controlled outputs supplied with constant current, the LEDs can be combined in parallel to create higher currents on a single string. The constant sink current for all channels is set through a single external resistor. This allows different LED drivers in the same application to sink various currents which provides optional implementation of multi-color LEDs. An additional advantage of the independent outputs is the ability to leave unused channels floating. The flexibility of the TLC592x-Q1 LED driver is ideal for applications such as (but not limited to): automotive LED lighting, 7-segment displays, scrolling single color displays, gaming machines, white goods, video billboards and video panels.
