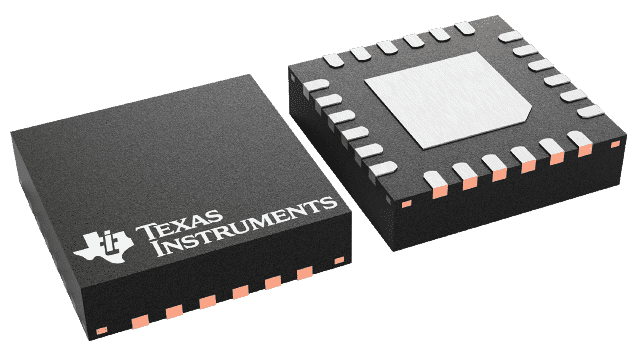

TLC59282RGET


YeeHing #: Y012-TLC59282RGET
Inventory: 4000

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TLC59282RGET Texas Instruments - Yeehing Electronics

16-channel constant current LED driver with 4-channel Grouped delay

Pricing (USD)

Quantity Unit Price
1 — 99 1.313
100 — 249 1.084
250 — 999 0.779
1,000 + 0.41

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category LED Lighting Drivers
RoHS Y
Number of Channels 16 Channel
Output Current 45 mA
Input Voltage 3 V to 5.5 V
Operating Frequency 35 MHz
Supply Current - Max 34 mA
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Mounting Style SMD/SMT
Package / Case VQFN-24
Series TLC59282
Packaging Reel
Features ON/OFF LED Driver
Operating Temperature Range - 40 C to + 85 C
Output Type Constant Current
Type Linear
Brand Texas Instruments
Topology Boost
High Level Output Current - 1 mA
Low Level Output Current 1 mA
Moisture Sensitive Yes
Operating Supply Voltage 3 V to 5.5 V
Product Type LED Lighting Drivers
Factory Pack Quantity 250
Subcategory Driver ICs
Unit Weight 0.001926 oz

For more information, please refer to datasheet

Documents

TLC59282RGET Datasheet

More Information

The TLC59282 is a 16-channel, constant-current sink driver. Each channel can be individually controlled via a simple serial communications protocol that is compatible with 3.3 V or 5 V CMOS logic levels, depending on the operating VCC. Once the serial data buffer is loaded, a rising edge on LATCH transfers the data to the LEDx outputs. The BLANK pin can be used to turn off all OUTn outputs during power-on and output data latching to prevent unwanted image displays during these times. The constant-current value of all 16 channels is set by a single external resistor. Multiple TLC59282s can be cascaded together to control additional LEDs from the same processor.
