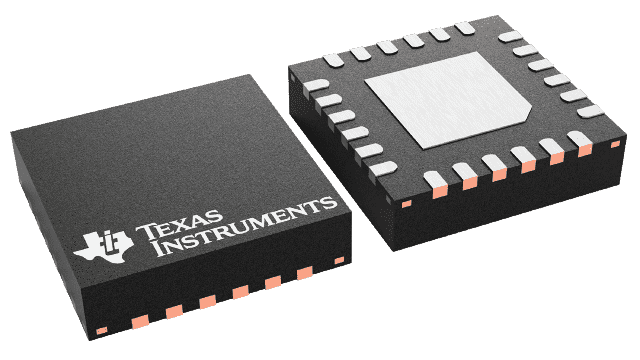

TLC59283RGER Texas Instruments - Yeehing Electronics

16 channel constant current LED driver with pre-charge FET

Pricing (USD)

Quantity	Unit Price
1 — 99	0.465
100 — 249	0.316
250 — 999	0.244
1,000 +	0.11

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

TLC59283RGER Datasheet

More Information

The TLC59283 is a 16-channel, constant-current sink light-emitting diode (LED) driver. Each channel can be individually controlled with a simple serial communications protocol that is compatible with 3.3-V or 5-V CMOS logic levels, depending on the operating VCC. When the serial data buffer is loaded, a LAT rising edge transfers the data to the OUT outputs. The BLANK pin can be used to turn off all OUT outputs during power-on and output data latching to prevent unwanted image displays during these times. The constant-current value of all 16 channels is set by a single external resistor.
