Texas Instruments

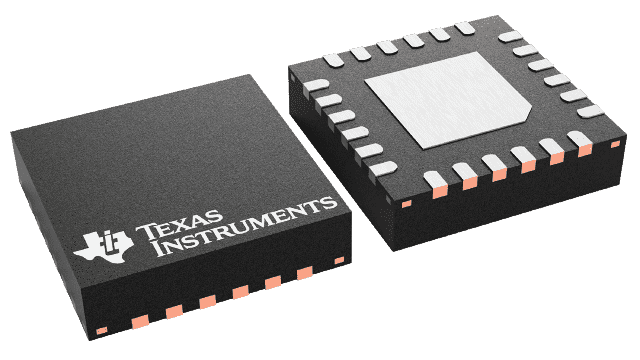

TLC5928RGER
TLC5928RGER
Regular price
$0.37 USD
Regular price
Sale price
$0.37 USD
Unit price
per
Couldn't load pickup availability
TLC5928RGER Texas Instruments - Yeehing Electronics
16 channel constant current LED driver with LED open Detection
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.176 |
| 100 — 249 | 0.971 |
| 250 — 999 | 0.698 |
| 1,000 + | 0.37 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LED Lighting Drivers |
| RoHS | Y |
| Number of Channels | 16 Channel |
| Output Current | 35 mA |
| Input Voltage | 3 V to 5.5 V |
| Operating Frequency | 35 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-24 |
| Series | TLC5928 |
| Packaging | Reel |
| Features | Error Flag, Fault Detection, LED Open Detection, LED Short to Ground Detection, LED Short to VLED D |
| Operating Temperature Range | - 40 C to + 85 C |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 3 V to 5.5 V |
| Product Type | LED Lighting Drivers |
| Factory Pack Quantity | 3000 |
| Subcategory | Driver ICs |
| Unit Weight | 0.001601 oz |
For more information, please refer to datasheet
Documents
| TLC5928RGER Datasheet |
More Information
The TLC5928 is a 16-channel, constant-current sink LED driver. Each channel can be turned on/off by writing serial data to an internal register. The constant-current value of all 16 channels is set by a single external resistor.
