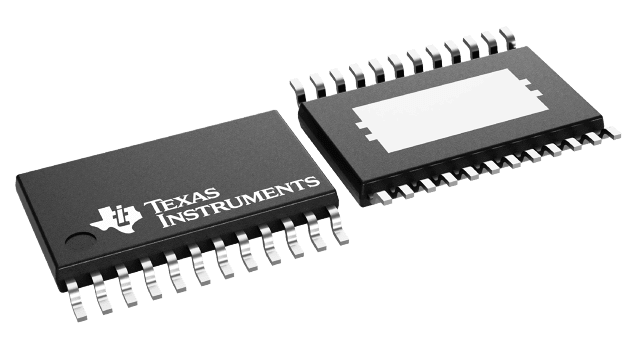

TLC5929PWP Texas Instruments - Yeehing Electronics

16-ch constant current LED driver with 7-bit global brightness, power-Save, and self-diagnostics

Pricing (USD)

Quantity	Unit Price
1 — 99	1.281
100 — 249	1.122
250 — 999	0.787
1,000 +	0.44

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LED Lighting Drivers
RoHS	Y
Number of Channels	16 Channel
Output Current	50 mA
Input Voltage	3 V to 5.5 V
Operating Frequency	33 MHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	HTSSOP-24
Series	TLC5929
Packaging	Reel
Features	Error Flag, Fault Detection, LED Open Detection, LED Short to Ground Detection, LED Short to VLED D
Operating Temperature Range	- 40 C to + 85 C
Brand	Texas Instruments
Moisture Sensitive	Yes
Operating Supply Voltage	3 V to 5.5 V
Product Type	LED Lighting Drivers
Factory Pack Quantity	2000
Subcategory	Driver ICs
Unit Weight	0.006081 oz

For more information, please refer to datasheet

Documents

TLC5929PWP Datasheet

More Information

The TLC5929 is a 16-channel constant current sink LED driver. Each channel can be turned on or off by writing data to an internal register. The constant current value of all 16 channels is set by a single external resistor with 128 steps for the global brightness control (BC).
