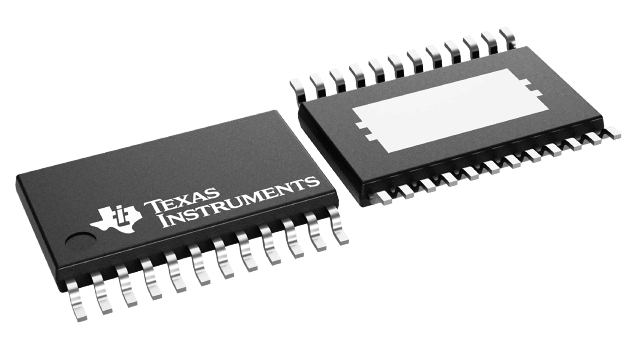

TLC5930PWP Texas Instruments - Yeehing Electronics
12 channel LED driver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.453 |
| 100 — 249 | 3.63 |
| 250 — 999 | 2.853 |
| 1,000 + | 1.69 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LED Display Drivers |
| RoHS | Y |
| Series | TLC5930 |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-24 |
| Operating Supply Voltage | 3 V to 3.6 V |
| Supply Current - Max | 50 mA |
| Minimum Operating Temperature | - 20 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Tube |
| Features | Fault Detection, Internal GS Clock, LED Open Detection, Power Good/Error Flag |
| Height | 1.15 mm |
| Length | 7.8 mm |
| Operating Temperature Range | - 20 C to + 85 C |
| Product | LED Display Drivers |
| Width | 4.4 mm |
| Brand | Texas Instruments |
| High Level Output Current | - 1 mA |
| Low Level Output Current | 1 mA |
| Moisture Sensitive | Yes |
| Pd - Power Dissipation | 3.7 W |
| Product Type | LED Display Drivers |
| Factory Pack Quantity | 60 |
| Subcategory | Driver ICs |
| Unit Weight | 0.003460 oz |
For more information, please refer to datasheet
Documents
| TLC5930PWP Datasheet |
More Information
The TLC5930 is a constant-current sink driver with an adjustable current value, and 1024 gray scale display that uses pulse width control. The output current is 0.2 mA to 40 mA with 12 bits of RGBx4. The maximum current value of the constant-current output can be set by one external resistor.
