Texas Instruments

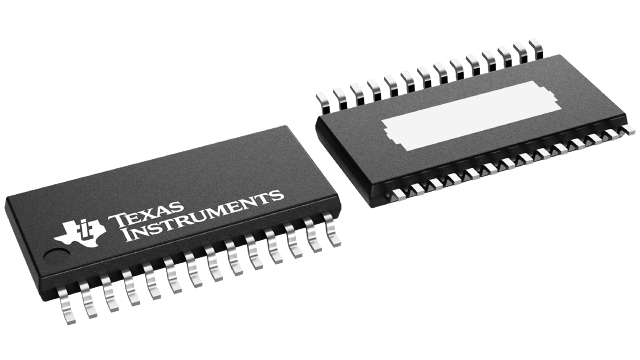

TLC5941QPWPRQ1
TLC5941QPWPRQ1
Regular price
$0.71 USD
Regular price
Sale price
$0.71 USD
Unit price
per
Couldn't load pickup availability
TLC5941QPWPRQ1 Texas Instruments - Yeehing Electronics
Automotive catalog 16 channel LED driver with dot correction and grayscale PWM control
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.062 |
| 100 — 249 | 1.807 |
| 250 — 999 | 1.267 |
| 1,000 + | 0.71 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LED Lighting Drivers |
| RoHS | Y |
| Number of Channels | 16 Channel |
| Output Current | 80 mA |
| Input Voltage | 3 V to 5.5 V |
| Operating Frequency | 30 MHz |
| Supply Current - Max | 60 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-28 |
| Qualification | AEC-Q100 |
| Series | TLC5941-Q1 |
| Packaging | Reel |
| Features | LED Open Detection, Thermal Error Flag |
| Operating Temperature Range | - 40 C to + 125 C |
| Output Type | Constant Current |
| Product | LED Drivers |
| Type | LED Driver |
| Brand | Texas Instruments |
| Topology | PWM |
| High Level Output Current | - 1 mA |
| Low Level Output Current | 1 mA |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 3 V to 5.5 V |
| Pd - Power Dissipation | 3958 mW |
| Product Type | LED Lighting Drivers |
| Factory Pack Quantity | 2000 |
| Subcategory | Driver ICs |
| Unit Weight | 0.004180 oz |
For more information, please refer to datasheet
Documents
| TLC5941QPWPRQ1 Datasheet |
More Information
The TLC5941-Q1 device is a 16-channel, constant-current sink, LED driver. Each channel has an individually adjustable 4096-step grayscale PWM brightness control and a 64-step constant-current sink (dot correction), which both are accessible via a serial interface. This device features two fault diagnostic circuits. The LED open detection (LOD) indicates a broken or disconnected LED at an output terminal. The thermal error flag (TEF) indicates an over temperature condition.
