Texas Instruments
TLC59482DBQ
TLC59482DBQ
Regular price
$0.59 USD
Regular price
Sale price
$0.59 USD
Unit price
per
Couldn't load pickup availability

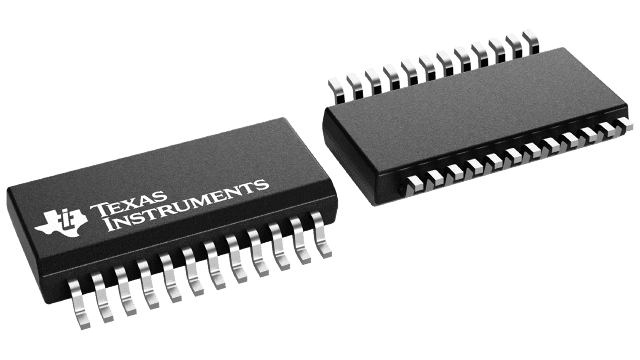

TLC59482DBQ Texas Instruments - Yeehing Electronics
16-channel, 16-bit PWM LED driver with 6-bit global brightness
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.707 |
| 100 — 249 | 1.496 |
| 250 — 999 | 1.049 |
| 1,000 + | 0.59 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LED Display Drivers |
| RoHS | Y |
| Series | TLC59482 |
| Mounting Style | SMD/SMT |
| Package / Case | QSOP-24 |
| Operating Supply Voltage | 3 V to 5.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Features | Brightness Control/Dimming |
| Operating Temperature Range | - 40 C to + 85 C |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | LED Display Drivers |
| Factory Pack Quantity | 2500 |
| Subcategory | Driver ICs |
| Unit Weight | 0.059966 oz |
For more information, please refer to datasheet
Documents
| TLC59482DBQ Datasheet |
More Information
The TLC59482 is a 16-channel, constant-current sink driver. Each channel has an individually-adjustable, pulse width modulation (PWM) grayscale (GS) brightness control with 65,536 steps. All channels have a 64-step global brightness control (BC). BC adjusts brightness deviation with other LED drivers. GS and BC data are accessible via a serial interface port.
