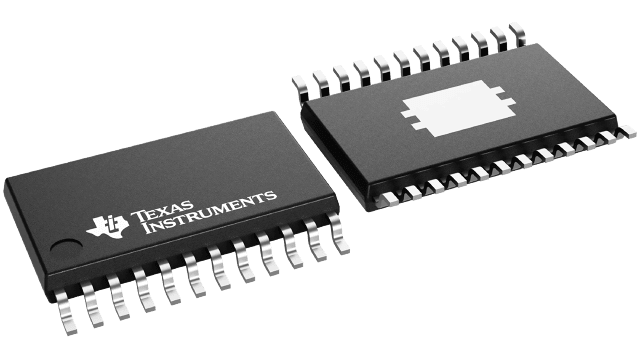

TLC5948APWP Texas Instruments - Yeehing Electronics

16-ch ES-PWM LED driver, 7-bit dot Cor, 7-bit global brightness, power Save Mode, Full diagnostics

Pricing (USD)

Quantity	Unit Price
1 — 99	1.784
100 — 249	1.563
250 — 999	1.096
1,000 +	0.62

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LED Lighting Drivers
RoHS	Y
Number of Channels	16 Channel
Output Current	60 mA
Input Voltage	3 V to 5.5 V
Operating Frequency	33 MHz
Supply Current - Max	3 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	HTSSOP-24
Series	TLC5948A
Packaging	Reel
Features	Dot Correction, Error Flag, Fault Detection, LED Open Detection, LED Short to Ground Detection, LED
Operating Temperature Range	- 40 C to + 85 C
Brand	Texas Instruments
Moisture Sensitive	Yes
Operating Supply Voltage	3 V to 5.5 V
Product Type	LED Lighting Drivers
Factory Pack Quantity	2000
Subcategory	Driver ICs
Unit Weight	0.006081 oz

For more information, please refer to datasheet

Documents

TLC5948APWP Datasheet

More Information

The TLC5948A is a 16-channel, constant-current sink LED driver. Each channel has an individually-adjustable, pulse width modulation (PWM) grayscale (GS) brightness control with 65,536 steps and 128 steps of constant-current dot correction (DC). DC adjusts brightness deviation between channels. All channels have a 128-step global brightness control (BC). BC adjusts brightness deviation with other LED drivers. GS, DC, and BC data are accessible with a serial interface port.
