Texas Instruments

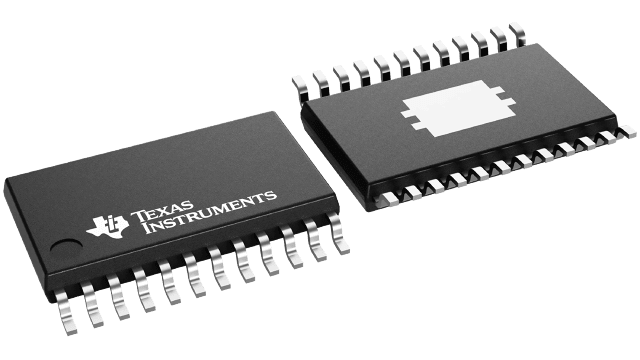

TLC5948APWPR
TLC5948APWPR
Regular price
$0.52 USD
Regular price
Sale price
$0.52 USD
Unit price
per
Couldn't load pickup availability
TLC5948APWPR Texas Instruments - Yeehing Electronics
16-ch ES-PWM LED driver, 7-bit dot Cor, 7-bit global brightness, power Save Mode, Full diagnostics
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.487 |
| 100 — 249 | 1.303 |
| 250 — 999 | 0.913 |
| 1,000 + | 0.52 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LED Lighting Drivers |
| RoHS | Y |
| Number of Channels | 16 Channel |
| Output Current | 60 mA |
| Input Voltage | 3 V to 5.5 V |
| Operating Frequency | 33 MHz |
| Supply Current - Max | 3 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-24 |
| Series | TLC5948A |
| Packaging | Reel |
| Features | Dot Correction, Error Flag, Fault Detection, LED Open Detection, LED Short to Ground Detection, LED |
| Operating Temperature Range | - 40 C to + 85 C |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 3 V to 5.5 V |
| Product Type | LED Lighting Drivers |
| Factory Pack Quantity | 2000 |
| Subcategory | Driver ICs |
| Unit Weight | 0.006081 oz |
For more information, please refer to datasheet
Documents
| TLC5948APWPR Datasheet |
More Information
The TLC5948A is a 16-channel, constant-current sink LED driver. Each channel has an individually-adjustable, pulse width modulation (PWM) grayscale (GS) brightness control with 65,536 steps and 128 steps of constant-current dot correction (DC). DC adjusts brightness deviation between channels. All channels have a 128-step global brightness control (BC). BC adjusts brightness deviation with other LED drivers. GS, DC, and BC data are accessible with a serial interface port.
