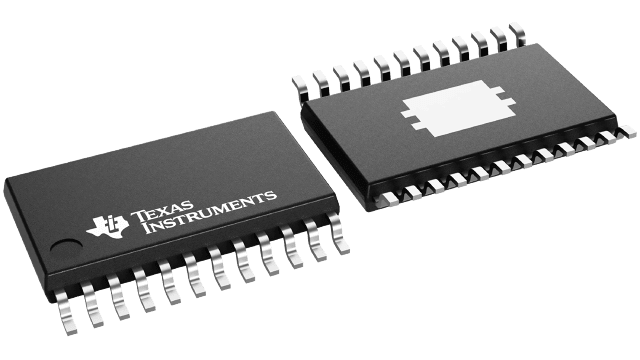

TLC5949PWP Texas Instruments - Yeehing Electronics
16-channel, 12-bit ES-PWM, Full self-Diagnosis LED driver with 7-bit global BC LED Lamp
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 2.24 |
100 — 249 | 1.963 |
250 — 999 | 1.376 |
1,000 + | 0.78 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | LED Lighting Drivers |
RoHS | Y |
Number of Channels | 16 Channel |
Output Current | 45 mA |
Input Voltage | 3 V to 3.6 V |
Operating Frequency | 33 MHz |
Supply Current - Max | 40 uA |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | HTSSOP-24 |
Series | TLC5949 |
Packaging | Reel |
Features | Error Flag, Fault Detection, LED Open Detection, LED Short to Ground Detection, LED Short to VLED D |
Operating Temperature Range | - 40 C to + 85 C |
Brand | Texas Instruments |
Moisture Sensitive | Yes |
Operating Supply Voltage | 3 V to 3.6 V |
Product Type | LED Lighting Drivers |
Factory Pack Quantity | 2000 |
Subcategory | Driver ICs |
Unit Weight | 0.006081 oz |
For more information, please refer to datasheet
Documents
TLC5949PWP Datasheet |
More Information
The TLC5949 is a 16-channel, constant-current sink LED driver. Each channel has an individually-adjustable, pulse width modulation (PWM) grayscale (GS) brightness control with 4096 steps. All channels have a 128-step global brightness control (BC). BC adjusts brightness deviation with other LED drivers. GS and BC data are accessible with a serial interface port.
