TLC5949PWPR Texas Instruments - Yeehing Electronics

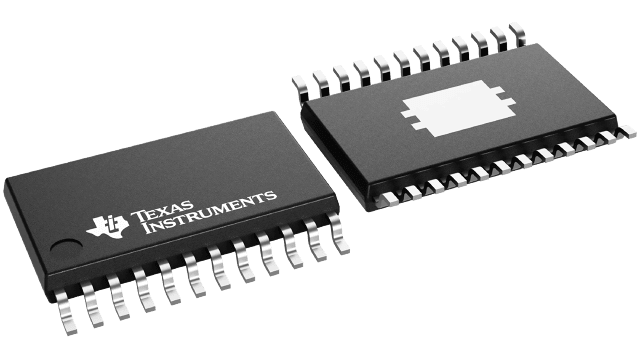

16-channel, 12-bit ES-PWM, Full self-Diagnosis LED driver with 7-bit global BC LED Lamp

Pricing (USD)

Quantity	Unit Price
1 — 99	1.866
100 — 249	1.635
250 — 999	1.147
1,000 +	0.65

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LED Lighting Drivers
RoHS	Y
Number of Channels	16 Channel
Output Current	45 mA
Input Voltage	3 V to 3.6 V
Operating Frequency	33 MHz
Supply Current - Max	40 uA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	HTSSOP-24
Series	TLC5949
Packaging	Reel
Features	Error Flag, Fault Detection, LED Open Detection, LED Short to Ground Detection, LED Short to VLED D
Operating Temperature Range	- 40 C to + 85 C
Brand	Texas Instruments
Moisture Sensitive	Yes
Operating Supply Voltage	3 V to 3.6 V
Product Type	LED Lighting Drivers
Factory Pack Quantity	2000
Subcategory	Driver ICs
Unit Weight	0.006081 oz

For more information, please refer to datasheet

Documents

TLC5949PWPR Datasheet

More Information

The TLC5949 is a 16-channel, constant-current sink LED driver. Each channel has an individually-adjustable, pulse width modulation (PWM) grayscale (GS) brightness control with 4096 steps. All channels have a 128-step global brightness control (BC). BC adjusts brightness deviation with other LED drivers. GS and BC data are accessible with a serial interface port.
