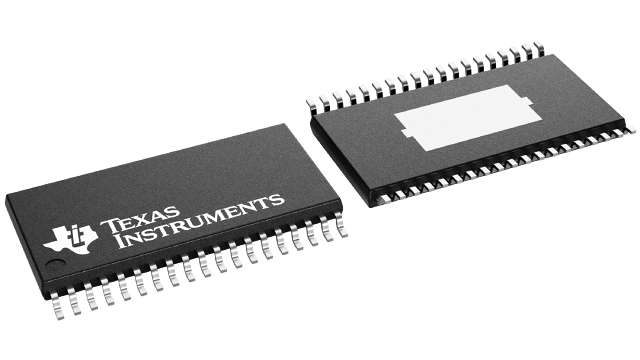

TLC5951DAP Texas Instruments - Yeehing Electronics

24-ch 12-bit PWM LED driver w/7-bit dot correction 8-bit global brightness

Pricing (USD)

Quantity	Unit Price
1 — 99	3.307
100 — 249	2.897
250 — 999	2.032
1,000 +	4.80

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LED Lighting Drivers
RoHS	Y
Number of Channels	24 Channel
Output Current	40 mA
Input Voltage	3 V to 5.5 V
Operating Frequency	30 MHz
Supply Current - Max	3 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	HTSSOP-38
Series	TLC5951
Packaging	Tube
Features	Dot Correction, Error Flag, Fault Detection, LED Open Detection, LED Short to Ground Detection, LED
Operating Temperature Range	- 40 C to + 85 C
Output Type	Constant Current
Type	Linear
Brand	Texas Instruments
Topology	PWM
Moisture Sensitive	Yes
Operating Supply Voltage	3 V to 5.5 V
Product Type	LED Lighting Drivers
Factory Pack Quantity	40
Subcategory	Driver ICs
Unit Weight	0.004586 oz

For more information, please refer to datasheet

Documents

TLC5951DAP Datasheet

More Information

The TLC5951 device is a 24-channel, constant-current sink driver. Each channel has an individually-adjustable, 4096-step, pulse-width modulation (PWM) grayscale (GS) brightness control and 128-step constant-current dot correction (DC). The dot correction adjusts brightness deviation between channels and other LED drivers. The output channels are grouped into three groups of eight channels. Each channel group has a 256-step global brightness control (BC) function and an individual grayscale clock input.
