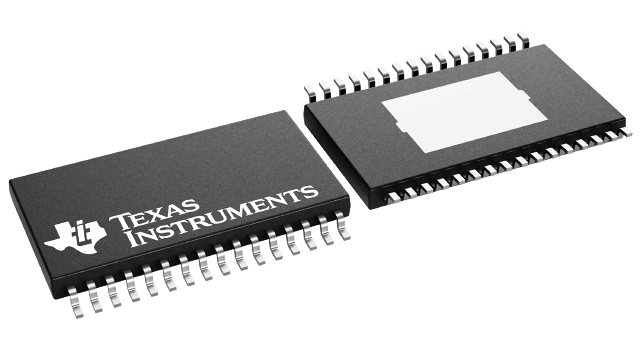

TLC5952DAPR Texas Instruments - Yeehing Electronics

24-channel constant-current LED driver with global brightness and LED open Short Detection

Pricing (USD)

Quantity	Unit Price
1 — 99	1.717
100 — 249	1.505
250 — 999	1.055
1,000 +	0.59

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LED Display Drivers
RoHS	Y
Series	TLC5952
Mounting Style	SMD/SMT
Package / Case	HTSSOP-32
Operating Supply Voltage	3 V to 5.5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Features	Brightness Control/Dimming, Error Flag, Fault Detection, LED Open/Short Detection
Operating Temperature Range	- 40 C to + 85 C
Brand	Texas Instruments
Moisture Sensitive	Yes
Product Type	LED Display Drivers
Factory Pack Quantity	2000
Subcategory	Driver ICs
Unit Weight	0.006388 oz

For more information, please refer to datasheet

Documents

TLC5952DAPR Datasheet

More Information

The TLC5952 device is a 24-channel, constant-current sink driver. Each channel can be turned on or off with internal register data. The output channels are grouped into three groups of eight channels each. Each channel group has a 128-step global brightness control (BC) function. Both on-off data and BC are writable via a serial interface. The maximum current value of all 24 channels is set by a single external resistor.
