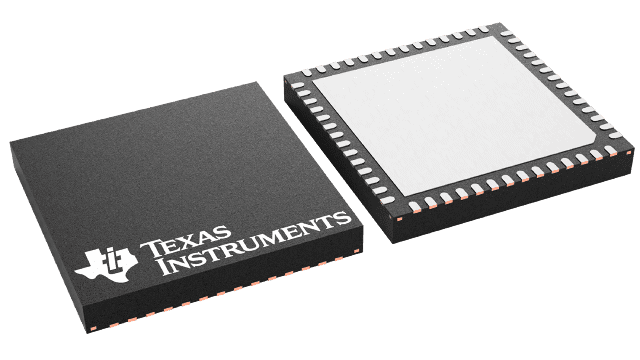

TLC5954RTQR Texas Instruments - Yeehing Electronics

48ch LED driver with global brightness control, LED open/Short Detection and power-Save Mode

Pricing (USD)

Quantity	Unit Price
1 — 99	3.205
100 — 249	2.613
250 — 999	2.054
1,000 +	1.39

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LED Lighting Drivers
RoHS	Y
Number of Channels	48 Channel
Output Current	34.9 mA
Input Voltage	3 V to 3.6 V
Operating Frequency	30 MHz
Supply Current - Max	25.5 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	QFN-56
Series	TLC5954
Packaging	Reel
Features	Brightness Control/Dimming, Error Flag, Fault Detection, LED Open Detection, LED Short to Ground Detection, LE
Operating Temperature Range	- 40 C to + 85 C
Output Type	Constant Current
Product	Constant Current Sink LED Drivers
Width	8.15 mm
Brand	Texas Instruments
High Level Output Current	- 2 mA
Low Level Output Current	2 mA
Moisture Sensitive	Yes
Operating Supply Voltage	3 V to 3.6 V
Product Type	LED Lighting Drivers
Factory Pack Quantity	2000
Subcategory	Driver ICs
Unit Weight	0.007055 oz

For more information, please refer to datasheet

Documents

TLC5954RTQR Datasheet

More Information

The TLC5954 is a 48-channel, constant-current sink LED driver. Each channel can be turned on or off by writing data to an internal register. The output channels (OUTX) are grouped into three groups of 16 channels. Each channel group (R, G, and B) has a 128-step global brightness control (BC) function. The maximum current value of all 48 channels can be set with an 8-step maximum current control (MC) function. The device has two error flags: LED open detection (LOD) and LED short detection (LSD). The error flags can be read via a serial interface port. The device also has a power-save mode that sets the total current consumption to 7 µA (typ) when all outputs are off.
