Texas Instruments

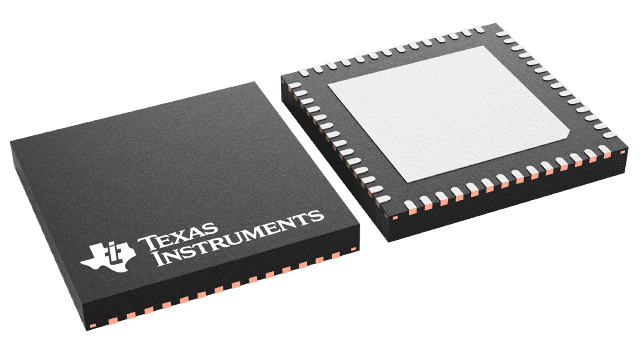

TLC59582RTQR
TLC59582RTQR
Regular price
$1.73 USD
Regular price
Sale price
$1.73 USD
Unit price
per
Couldn't load pickup availability
TLC59582RTQR Texas Instruments - Yeehing Electronics
48-channel, 16-bit ESPWM LED driver with pre-charge FET, LOD Caterpillar and 16-multiplexing support
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.545 |
| 100 — 249 | 3.705 |
| 250 — 999 | 2.912 |
| 1,000 + | 1.73 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LED Lighting Drivers |
| RoHS | Y |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | QFN-56 |
| Series | TLC59582 |
| Packaging | Reel |
| Features | 48CH LED Driver, Error Flag, Fault Detection, LED Open Detection, LED Short to Ground Detection, LE |
| Operating Temperature Range | - 40 C to + 85 C |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | LED Lighting Drivers |
| Factory Pack Quantity | 2000 |
| Subcategory | Driver ICs |
| Unit Weight | 0.005390 oz |
For more information, please refer to datasheet
Documents
| TLC59582RTQR Datasheet |
More Information
The TLC59581/82are 48-channel constant-current sink drivers. Each channel has an individually-adjustable, 65536-step, pulse width modulation (PWM) grayscale (GS) brightness control.
