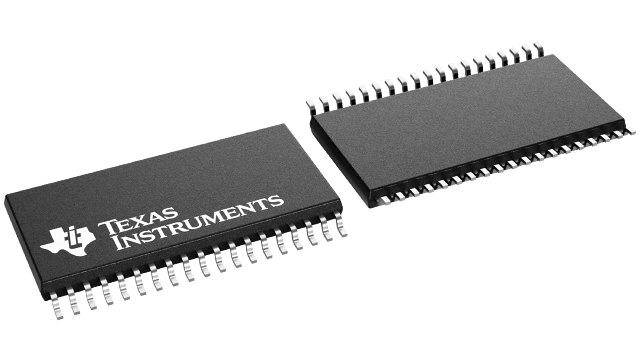

TLC5960DA Texas Instruments - Yeehing Electronics

8-channel LED driver controller with integrated Intelligent Thermal controller

Pricing (USD)

Quantity	Unit Price
1 — 99	2.462
100 — 249	2.158
250 — 999	1.513
1,000 +	0.85

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	LED Lighting Drivers
RoHS	Y
Number of Channels	8 Channel
Input Voltage	3 V to 5.5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	TSSOP-38
Series	TLC5960
Packaging	Tube
Features	DC/DC, Error Flag, Fault Detection, Internal GS Clock, LED Open Detection, PWM LED Driver, Power Go
Operating Temperature Range	- 40 C to + 85 C
Brand	Texas Instruments
Moisture Sensitive	Yes
Operating Supply Voltage	3 V to 5.5 V
Product Type	LED Lighting Drivers
Factory Pack Quantity	40
Subcategory	Driver ICs
Unit Weight	0.007189 oz

For more information, please refer to datasheet

Documents

TLC5960DA Datasheet

More Information

The TLC5960 is an eight-channel PWM LED driver with four intelligent headroom voltage monitor (iHVM) outputs. The LED drivers have scalable, high-voltage capability and provide 1% maximum current matching accuracy between LED strings. To achieve optimal efficiency, the iHVM automatically optimizes the external dc/dc converter output voltage to compensate for the forward-voltage variations of the LED.
