Texas Instruments
TLC5960DAR
TLC5960DAR
Regular price
$0.71 USD
Regular price
Sale price
$0.71 USD
Unit price
per
Couldn't load pickup availability

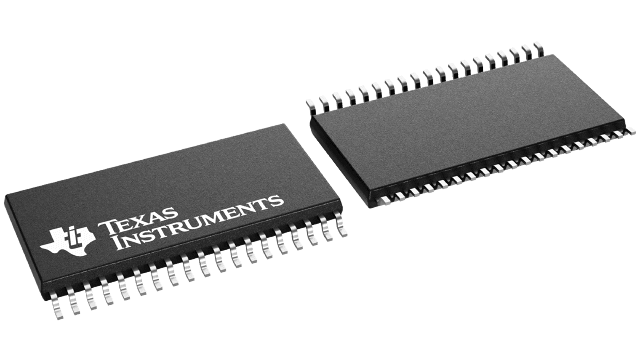

TLC5960DAR Texas Instruments - Yeehing Electronics
8-channel LED driver controller with integrated Intelligent Thermal controller
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.052 |
| 100 — 249 | 1.798 |
| 250 — 999 | 1.261 |
| 1,000 + | 0.71 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LED Lighting Drivers |
| RoHS | Y |
| Number of Channels | 8 Channel |
| Input Voltage | 3 V to 5.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | TSSOP-38 |
| Series | TLC5960 |
| Packaging | Reel |
| Features | DC/DC, Error Flag, Fault Detection, Internal GS Clock, LED Open Detection, PWM LED Driver, Power Go |
| Operating Temperature Range | - 40 C to + 85 C |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 3 V to 5.5 V |
| Product Type | LED Lighting Drivers |
| Factory Pack Quantity | 2000 |
| Subcategory | Driver ICs |
| Unit Weight | 0.007189 oz |
For more information, please refer to datasheet
Documents
| TLC5960DAR Datasheet |
More Information
The TLC5960 is an eight-channel PWM LED driver with four intelligent headroom voltage monitor (iHVM) outputs. The LED drivers have scalable, high-voltage capability and provide 1% maximum current matching accuracy between LED strings. To achieve optimal efficiency, the iHVM automatically optimizes the external dc/dc converter output voltage to compensate for the forward-voltage variations of the LED.
