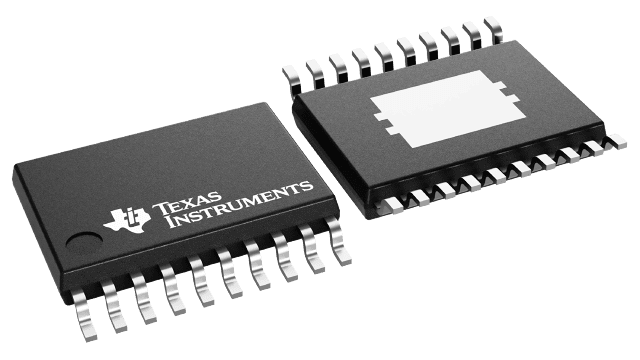

TLC5971PWPR Texas Instruments - Yeehing Electronics
12-channel, 16-bit ES-PWM RGB LED driver with 3.3V Linear Regulator
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.347 |
| 100 — 249 | 2.057 |
| 250 — 999 | 1.442 |
| 1,000 + | 0.81 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LED Display Drivers |
| RoHS | Y |
| Series | TLC5971 |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-20 |
| Operating Supply Voltage | 3.1 V to 3.5 V |
| Supply Current - Max | 4 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Features | Fault Detection, Internal GS Clock, LED Open Detection, PWM LED Driver, Power Good/Error Flag |
| Operating Temperature Range | - 40 C to + 85 C |
| Brand | Texas Instruments |
| High Level Output Current | - 2 mA |
| Low Level Output Current | 2 mA |
| Moisture Sensitive | Yes |
| Pd - Power Dissipation | 3.121 W |
| Product Type | LED Display Drivers |
| Factory Pack Quantity | 2000 |
| Subcategory | Driver ICs |
| Unit Weight | 0.002885 oz |
For more information, please refer to datasheet
Documents
| TLC5971PWPR Datasheet |
More Information
The TLC5971 device is a 12-channel, constant-current sink driver. Each output channel has individually adjustable currents with 65536 PWM grayscale (GS) steps. Also, each color group can be controlled by 128 constant-current sink steps with the global brightness control (BC) function. GS control and BC are accessible through a two-wire signal interface. The maximum current value for each channel is set by a single external resistor. All constant-current outputs are turned off when the IC is in an overtemperature condition.
