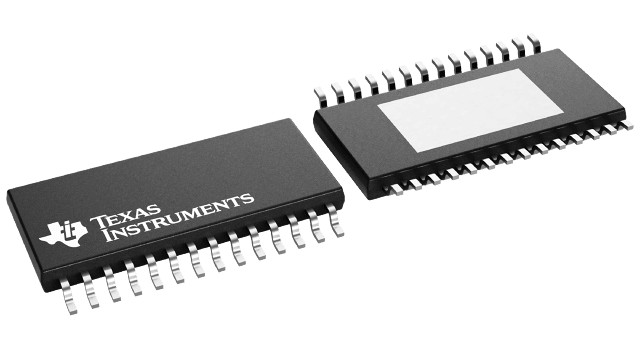

TLC6C5816QPWPRQ1 Texas Instruments - Yeehing Electronics
Automotive power logic 16-bit Shift Register LED driver with diagnostics
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.257 |
| 100 — 249 | 1.038 |
| 250 — 999 | 0.746 |
| 1,000 + | 0.39 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | LED Lighting Drivers |
| RoHS | Y |
| Number of Channels | 16 Channel |
| Output Current | 50 mA |
| Input Voltage | 3 V |
| Operating Frequency | 10 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-28 |
| Series | TLC6C5816-Q1 |
| Packaging | Tube |
| Features | Fault Detection, LED Open Detection, LED Short to Ground Detection, Thermal Error Flag, Thermal Shu |
| Operating Temperature Range | - 40 C to + 125 C |
| Product | LED Drivers |
| Type | Shift Register LED Driver With Diagnostics |
| Width | 4.5 mm |
| Brand | Texas Instruments |
| Development Kit | TLC6C5816EVM |
| Moisture Sensitive | Yes |
| Product Type | LED Lighting Drivers |
| Factory Pack Quantity | 2000 |
| Subcategory | Driver ICs |
| Unit Weight | 0.004755 oz |
For more information, please refer to datasheet
Documents
| TLC6C5816QPWPRQ1 Datasheet |
More Information
There are various LED indicators in automotive applications. Some applications such as hybrid instrument clusters and E-shifters have safety requirements which must have LED fault diagnostics; other applications such as HVAC panels only have an LED on-off control, which does not require LED diagnostics. To cover both applications, the TLC6C5816-Q1 device implements a flexible LED diagnostics function. By writing to the registers, the output channels can be configured with LED diagnostics features or without LED diagnostics features.
