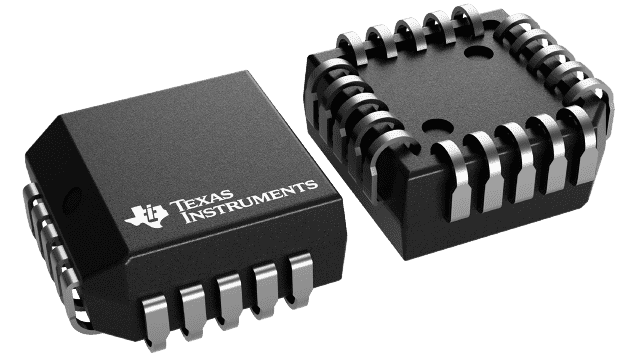

TLC7524IFN Texas Instruments - Yeehing Electronics
8-bit, 0.1-μs MDAC, parallel input, fast control signaling for DSP, easy micro interface
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.28 |
| 100 — 249 | 2.874 |
| 250 — 999 | 2.015 |
| 1,000 + | 1.14 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital to Analog Converters - DAC |
| RoHS | Y |
| Resolution | 8 bit |
| Sampling Rate | 10 MS/s |
| Number of Channels | 1 Channel |
| Interface Type | Parallel |
| Supply Voltage - Max | 15.5 V |
| Supply Voltage - Min | 4.75 V |
| Minimum Operating Temperature | - 25 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | PLCC-20 |
| Packaging | Reel |
| Height | 4.06 mm |
| Number of Converters | 1 Converter |
| Architecture | R-2R |
| Brand | Texas Instruments |
| Operating Supply Voltage | 5 V, 15 V |
| Product Type | DACs - Digital to Analog Converters |
| Factory Pack Quantity | 1 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.025468 oz |
For more information, please refer to datasheet
Documents
| TLC7524IFN Datasheet |
More Information
The TLC7524C, TLC7524E, and TLC7524I are CMOS, 8-bit, digital-to-analog converters (DACs) designed for easy interface to most popular microprocessors.
