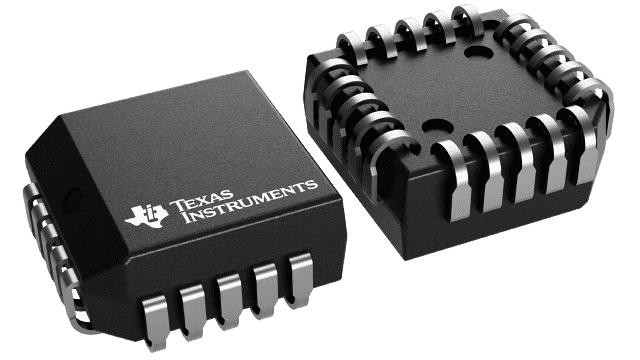

TLC7528CFNR Texas Instruments - Yeehing Electronics
8-bit, 0.1 μs dual MDAC, parallel input, fast control signaling for DSP, easy micro I/F
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.901 |
| 100 — 249 | 3.418 |
| 250 — 999 | 2.396 |
| 1,000 + | 1.35 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Digital to Analog Converters - DAC |
| RoHS | Y |
| Series | TLC7528 |
| Resolution | 8 bit |
| Sampling Rate | 10 MS/s |
| Number of Channels | 2 Channel |
| Interface Type | Parallel |
| Supply Voltage - Max | 5.25 V, 15.5 V |
| Supply Voltage - Min | 4.75 V, 14.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | PLCC-20 |
| Packaging | Reel |
| Height | 4.06 mm |
| Number of Converters | 2 Converter |
| Output Type | Parallel |
| Power Consumption | 7.5 mW |
| Architecture | R-2R |
| Brand | Texas Instruments |
| Gain Error | 1 % FSR |
| Operating Supply Voltage | 5 V, 15 V |
| Product Type | DACs - Digital to Analog Converters |
| Factory Pack Quantity | 1000 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.025468 oz |
For more information, please refer to datasheet
Documents
| TLC7528CFNR Datasheet |
More Information
The TLC7528C, TLC7528E, and TLC7528I are dual, 8-bit, digital-to-analog converters (DACs) designed with separate on-chip data latches and feature exceptionally close DAC-to-DAC matching. Data is transferred to either of the two DAC data latches through a common, 8-bit, input port. Control input DACA/DACB determines which DAC is to be loaded. The load cycle of these devices is similar to the write cycle of a random-access memory, allowing easy interface to most popular microprocessor buses and output ports. Segmenting the high-order bits minimizes glitches during changes in the most significant bits, where glitch impulse is typically the strongest.
