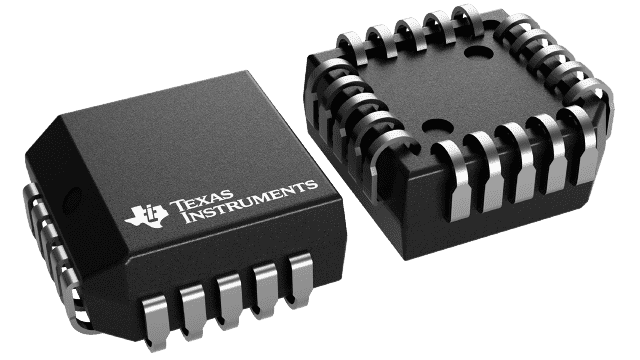

TLC7528IFN Texas Instruments - Yeehing Electronics

8-bit, 0.1 μs dual MDAC, parallel input, fast control signaling for DSP, easy micro I/F

Pricing (USD)

Quantity	Unit Price
1 — 99	4.179
100 — 249	3.662
250 — 999	2.568
1,000 +	1.45

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Digital to Analog Converters - DAC
RoHS	Y
Series	TLC7528
Resolution	8 bit
Sampling Rate	10 MS/s
Number of Channels	2 Channel
Interface Type	Parallel
Supply Voltage - Max	5.25 V, 15.5 V
Supply Voltage - Min	4.75 V, 14.5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Mounting Style	SMD/SMT
Package / Case	PLCC-20
Packaging	Tube
Height	4.06 mm
Number of Converters	2 Converter
Power Consumption	7.5 mW
Architecture	R-2R
Brand	Texas Instruments
Gain Error	1 % FSR
Operating Supply Voltage	- 0.3 V to + 16.5 V
Product Type	DACs - Digital to Analog Converters
Factory Pack Quantity	46
Subcategory	Data Converter ICs
Unit Weight	0.025468 oz

For more information, please refer to datasheet

Documents

TLC7528IFN Datasheet

More Information

The TLC7528C, TLC7528E, and TLC7528I are dual, 8-bit, digital-to-analog converters (DACs) designed with separate on-chip data latches and feature exceptionally close DAC-to-DAC matching. Data is transferred to either of the two DAC data latches through a common, 8-bit, input port. Control input DACA/DACB determines which DAC is to be loaded. The load cycle of these devices is similar to the write cycle of a random-access memory, allowing easy interface to most popular microprocessor buses and output ports. Segmenting the high-order bits minimizes glitches during changes in the most significant bits, where glitch impulse is typically the strongest.
