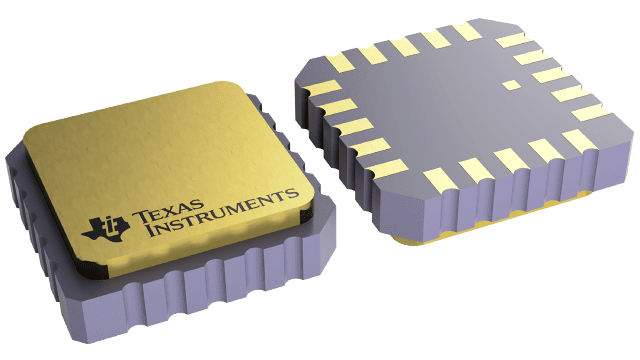

TLE2072MFKB Texas Instruments - Yeehing Electronics
Military-grade, dual, 38-V, 10-MHz, 40-V/μs slew rate, In to V+, JFET-input op amp
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 34.736 |
| 100 — 249 | 30.876 |
| 250 — 999 | 25.382 |
| 1,000 + | 18.16 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| TLE2072MFKB Datasheet |
More Information
The TLE207x series of JFET-input operational amplifiers more than double the bandwidth and triple the slew rate of the TL07x and TL08x families of BiFET operational amplifiers. Texas Instruments Excalibur process yields a typical noise floor of 11.6 nV/Hz, 17-nV/Hz ensured maximum, offering immediate improvement in noise-sensitive circuits designed using the TL07x. The TLE207x also has wider supply voltage rails, increasing the dynamic signal range for BiFET circuits to ±19 V. On-chip zener trimming of offset voltage yields precision grades for greater accuracy in dc-coupled applications. The TLE207x are pin-compatible with lower performance BiFET operational amplifiers for ease in improving performance in existing designs.
