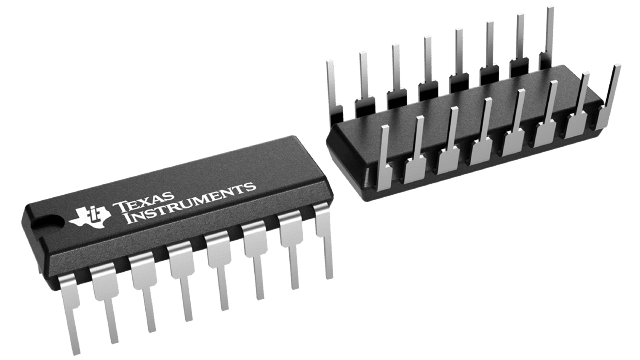

TLE2301INE Texas Instruments - Yeehing Electronics
Excalibur 3-State-Output Wide-Bandwidth Power Operational Amplifier
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.613 |
| 100 — 249 | 3.761 |
| 250 — 999 | 2.956 |
| 1,000 + | 1.75 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Operational Amplifiers - Op Amps |
| RoHS | Y |
| Mounting Style | Through Hole |
| Package / Case | PDIP-16 |
| Output Current per Channel | 1 A |
| Number of Channels | 1 Channel |
| GBP - Gain Bandwidth Product | 8 MHz |
| SR - Slew Rate | 14 V/us |
| CMRR - Common Mode Rejection Ratio | 70 dB to 97 dB |
| Ib - Input Bias Current | 450 nA |
| Vos - Input Offset Voltage | 10 mV |
| Operating Supply Current | 11 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Shutdown | Shutdown |
| Series | TLE2301 |
| Packaging | Tube |
| Amplifier Type | Wideband Amplifier |
| Features | Shutdown |
| Height | 4.57 mm |
| Length | 19.8 mm |
| Output Type | Rail-to-Rail |
| Product | Operational Amplifiers |
| Supply Type | Dual |
| Technology | Bipolar |
| Width | 6.35 mm |
| Brand | Texas Instruments |
| Dual Supply Voltage | +/- 5 V, +/- 9 V, +/- 12 V |
| en - Input Voltage Noise Density | 44 nV/sqrt Hz |
| Maximum Dual Supply Voltage | +/- 20 V |
| Minimum Dual Supply Voltage | +/- 4.5 V |
| Operating Supply Voltage | +/- 4.5 V to +/- 20 V |
| Pd - Power Dissipation | 2075 mW |
| Product Type | Op Amps - Operational Amplifiers |
| Factory Pack Quantity | 25 |
| Subcategory | Amplifier ICs |
| Vcm - Common Mode Voltage | Negative Rail + 1 V to Positive Rail - 3.2 V |
| Voltage Gain dB | 87 dB |
| Unit Weight | 0.033570 oz |
For more information, please refer to datasheet
Documents
| TLE2301INE Datasheet |
More Information
The TLE2301 is a power operational amplifier that can deliver an output current of 1 A at high frequencies with very low total harmonic distortion. The device has an integral 3-state mode to drive the output stage into a high-impedance state and also to reduce the supply current to less than 3.5 mA.
