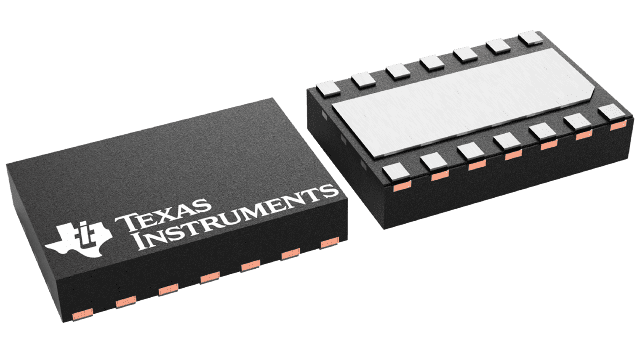

TLIN1022DMTRQ1 Texas Instruments - Yeehing Electronics

Dual Local Interconnect Network (LIN) Transceiver With Dominant State Timeout

Pricing (USD)

Quantity	Unit Price
1 — 99	1.232
100 — 249	1.018
250 — 999	0.731
1,000 +	0.39

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

TLIN1022DMTRQ1 Datasheet

More Information

The TLIN1022-Q1 is a Dual Local Interconnect Network (LIN) physical layer transceiver with integrated wake-up and protection features, complaint to LIN 2.0, LIN 2.1, LIN 2.2, LIN 2.2A and ISO/DIS 17987–4.2 standards. LIN is a single wire bidirectional bus typically used for low speed in-vehicle networks using data rates up to 20 kbps. The TLIN1022-Q1 is designed to support 12 V applications with wider operating voltage and additional bus-fault protection. The LIN receiver supports data rates up to 100 kbps for in-line programming. The TLIN1022-Q1 converts the LIN protocol data stream on the TXD input into a LIN bus signal using a current-limited wave-shaping driver which reduces electromagnetic emissions (EME). The receiver converts the data stream to logic level signals that are sent to the microprocessor through the open-drain RXD pin. Ultra-low current consumption is possible using the sleep mode which allows wake-up via LIN bus or pin.
